Z103 2 3 Colors 10 Stations Rotary Screen Printer for Cylindrical Products

Product Brief:

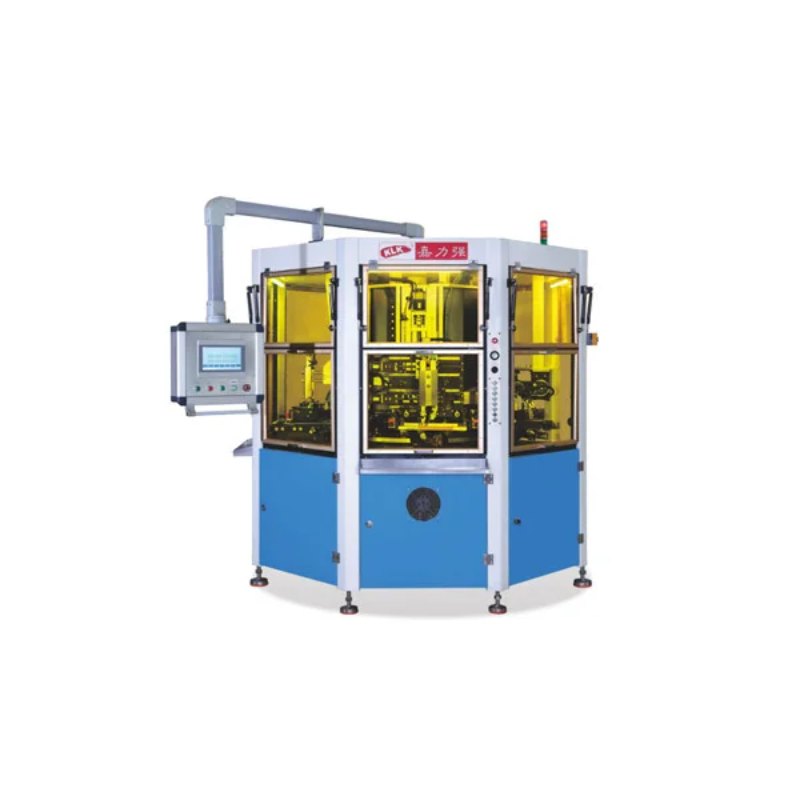

The Z103 2 3 Colors 10 Stations Rotary Screen Printer is an industrial printing machine designed for multi-color screen printing on cylindrical products without registration points. It is suitable for applications involving pen barrels, lipstick tubes, mascara tubes, and similar cylindrical containers that require consistent decorative or product identification printing.

The machine integrates an automatic loading conveyor, with an optional hopper-based loading system, to support efficient material feeding. Automatic flame treatment is available as a built-in process feature, while optional automatic mechanical pre-registration and LED or electrode UV curing configurations provide flexibility for different production requirements.

With multiple programmable settings that can be stored for repeat production, the Z103 supports convenient changeovers between printing tasks. Its enclosed cabinet design helps maintain a cleaner working environment and supports more controlled production operations.

Manufactured by Shenzhen Kar Lee Keung Electronic Equipment Ltd., the machine is designed for manufacturers seeking automated screen printing solutions for cosmetic packaging, writing instruments, and other cylindrical products.

2. Key Features and Advantages

Automatic Loading System

• Equipped with an automatic loading conveyor.

• Optional hopper-based loading system for different feeding requirements.

• Supports a more continuous production workflow and reduces manual handling during loading.

Automatic Flame Treatment

• Incorporates automatic flame treatment to support surface preparation before printing.

• Helps improve printing suitability on compatible substrates.

• Substrate compatibility and treatment parameters should be confirmed before production.

Multi-Color Rotary Screen Printing

• Designed for two- or three-color printing configurations, subject to the confirmed machine setup.

• Rotary printing structure supports printing on cylindrical and compatible oval products.

• Suitable for product decoration, branding, and other printed graphics.

Optional Mechanical Pre-Registration

• Automatic mechanical pre-registration is available as an option.

• Helps position products for printing where the application requires additional alignment control.

• Configuration should be selected according to the product geometry and printing requirements.

Flexible UV Curing Options

• Supports LED UV or electrode UV options.

• Specified LED UV power: 230 W.

• The appropriate curing configuration depends on the ink system, substrate, and production process.

Programmable Production Settings

• Multiple programs can be stored for repeat production tasks.

• Supports more convenient setup management when changing between product types or print jobs.

• Helps reduce repeated parameter entry during routine production.

Enclosed Cabinet Design

• Closed cabinet structure helps keep the printing area more contained.

• Supports a cleaner and more organized production environment.

• Suitable for industrial manufacturing facilities requiring a compact, enclosed printing setup.

3. Technical Specifications

Note: Printing speeds are reference values and may vary according to product shape, dimensions, ink, curing configuration, printing pattern, and operating conditions. Confirm the final machine configuration, color count, station arrangement, and utility requirements with the manufacturer before ordering.

4. Applicable Products and Industries

The Z103 is designed for cylindrical and compatible products that do not require a registration point for printing.

Cosmetic Packaging

• Lipstick tubes

• Mascara tubes

• Compatible cosmetic containers

• Cylindrical packaging components

Writing Instruments

• Pen barrels

• Cylindrical pen bodies

• Other compatible writing instrument components

Plastic and Container Manufacturing

• Cylindrical plastic components

• Compatible round or oval containers

• Product housings and packaging parts suitable for screen printing

Contract Printing and Industrial Decoration

• Product logos and brand graphics

• Decorative patterns

• Product identification graphics

• Multi-color printed designs

Actual application suitability depends on the product material, dimensions, surface geometry, ink compatibility, and printing requirements.

5. Production Advantages

Improved Feeding Efficiency

The automatic loading conveyor supports material feeding for repetitive production tasks. An optional hopper loading system can be considered when a different loading arrangement is required.

Integrated Surface Preparation

Automatic flame treatment supports the preparation of compatible product surfaces before printing. This can help streamline production by combining surface treatment with the printing workflow.

Flexible Configuration

Optional mechanical pre-registration and alternative UV curing configurations allow the machine to be configured for different products and process requirements.

Repeatable Setup Management

Stored programs help operators manage recurring printing jobs and reduce the need to re-enter settings for every production run.

Enclosed Operating Structure

The closed cabinet design helps contain the printing area and contributes to a cleaner production environment.

6. Manufacturer Information

Shenzhen Kar Lee Keung Electronic Equipment Ltd. is a manufacturing enterprise specializing in the development, design, and production of industrial printing equipment and related production machinery.

Its product range includes:

• Pad printing machines

• Screen printing machines

• Hot stamping machines

• UV curing ovens

• Flame treatment machines

• Screen stretching machines

• Plate exposure machines

• Constant-temperature baking equipment

• Eco-friendly spraying equipment

• Industrial assembly line systems

The company also supplies tunnel ovens, cabinet ovens, LED-specific baking ovens, spray coating equipment, belt-type and roller-type production lines, and customized assembly line solutions.

Manufacturing and Quality Management

The company emphasizes quality, production efficiency, safety, customer service, and continuous improvement. Its stated management approach includes the 5S principles and adherence to the ISO 9001:2000 quality management system.

With experience in industrial printing machinery and related production equipment, Shenzhen Kar Lee Keung Electronic Equipment Ltd. provides equipment options for manufacturers requiring printing, surface treatment, curing, and production-line integration.

7. Frequently Asked Questions

Q1: What products can the Z103 print?

A: It is designed for cylindrical products without registration points, including pen barrels, lipstick tubes, mascara tubes, and other compatible products.

Q2: What product dimensions does the machine support?

A: The specified article diameter is Φ10–40 mm, and the article height is 35–150 mm. Confirm the suitability of the exact product geometry before ordering.

Q3: What is the printing speed?

A: The reference maximum speed is 40–60 pieces per minute for round and oval products, and 30–40 pieces per minute for square products. Actual output depends on the product and process configuration.

Q4: Does the machine support automatic loading?

A: Yes. It includes an automatic loading conveyor, with an optional hopper-based loading system.

Q5: Is flame treatment included?

A: Automatic flame treatment is listed as a machine feature. Confirm the final configuration and process requirements with the manufacturer.

Q6: What UV curing options are available?

A: LED UV and electrode UV configurations are available. The specified LED UV power is 230 W. Select the suitable option according to the ink and production process.

Q7: Can printing parameters be stored?

A: Yes. The machine supports storage of multiple programs for recurring production tasks.

Q8: What utilities are required?

A: The listed power supply is 380 V, 50/60 Hz, with a total machine power of 6 kW. The specified air pressure is 0.5–0.7 MPa. Confirm the electrical and pneumatic requirements for the selected configuration before installation.

8. Inquiry and Purchasing Information

For a quotation, provide the product material, diameter, height, shape, number of printing colors, artwork requirements, target production speed, ink type, and preferred UV curing option. If automatic feeding or pre-registration is required, include these requirements in the inquiry.

The manufacturer can review your product samples and production requirements to confirm machine suitability, configuration, and expected printing performance.

Contact Shenzhen Kar Lee Keung Electronic Equipment Ltd. for technical details, configuration options, and purchasing information about the Z103 2 3 Colors 10 Stations Rotary Screen Printer.
