Sinchold Introduces Adjustable Bolted Rail Clips for Industrial Crane Rail Systems

Sinchold has expanded its industrial rail fastening solutions with a range of adjustable bolted rail clips designed for crane rail and industrial track applications. The products are developed for applications where reliable rail fixation, installation flexibility, and convenient maintenance are important.

The rail clips are suitable for various industrial environments, including automated warehouses, logistics systems, steel plants, shipyards, ports, and wharves. Different configurations are available to accommodate light and heavy rail applications.

Adjustable Rail Fastening for Industrial Applications

Bolted rail clips provide a mechanical method of securing rails to their supporting foundations. The fastening assembly uses bolts, nuts, washers, and pressure components to maintain contact between the rail and its foundation.

The adjustable structure allows the fastening arrangement to be adapted to different rail installation requirements. This can be particularly useful for industrial projects involving different rail dimensions or limited installation space.

Sinchold's rail clip solutions are designed with practical installation and maintenance requirements in mind, providing access to fastening components for inspection and adjustment.

3116 Series for Light Rail Applications

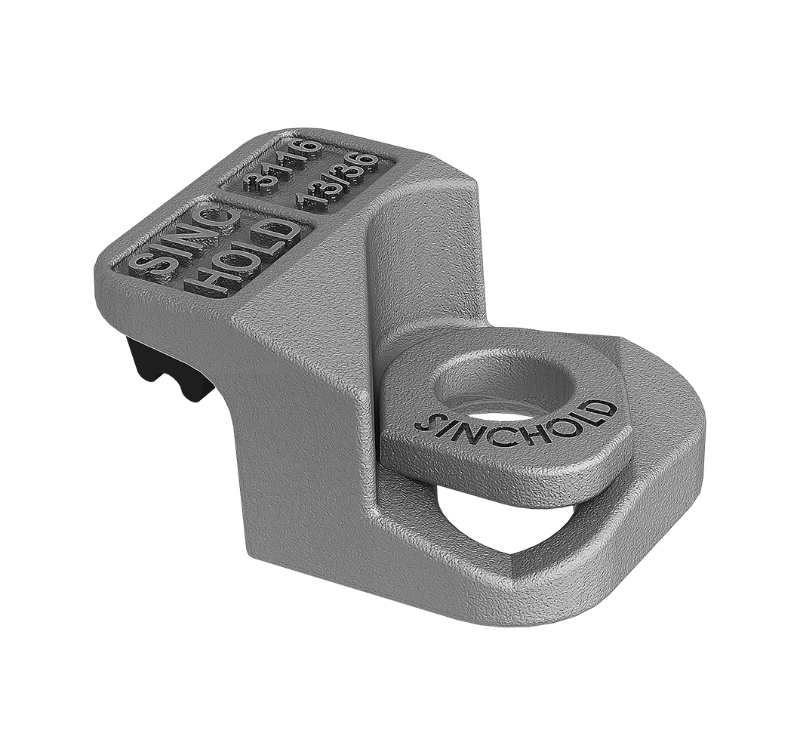

The 3116/10/34 and 3116/13/36 Adjustable Crane Rail Clips are designed for light rail applications.

The series features a compact, low-profile structure and uses M16 bolts. The configuration is suitable for crane systems equipped with guide rollers and has been applied in logistics systems and automated warehousing environments.

The clips have a stated horizontal force capacity of up to 60 kN, subject to the specific system design and operating conditions.

A specially designed vulcanized rubber pressure element is used in the fastening structure to provide flexible contact with the rail while maintaining the required clamping effect.

3124/15/42 for Heavy Rail Systems

For applications involving heavier rails and higher mechanical loads, Sinchold offers the 3124/15/42 Adjustable Crane Rail Clip.

The heavy-duty configuration uses M24 bolts and is designed for applications requiring a higher level of lateral restraint. The model has a stated horizontal force capacity of up to 150 kN.

Its low-profile structure makes it suitable for crane rail installations where clearance around the rail and adjacent equipment needs to be considered.

The product has been used in industrial environments including steel plants, shipyards, ports, and wharves.

Designed for Demanding Industrial Environments

Industrial rail systems can operate under continuous mechanical loading and in challenging environmental conditions. Depending on the application, fastening components may be exposed to vibration, moisture, dust, and other external factors.

Sinchold's bolted rail clips use durable metal construction and can be supplied with appropriate surface treatment for corrosion protection. The final material and surface specification can be selected according to project requirements and operating conditions.

This makes the product range suitable for both indoor and outdoor industrial rail applications.

Key Product Features

The adjustable bolted rail clip range offers several features for industrial rail system integrators and equipment manufacturers:

• Adjustable fastening configuration

• Low-profile construction

• M16 and M24 bolt options

• Solutions for light and heavy rail applications

• Self-locking fastening design

• Vulcanized rubber pressure elements on applicable models

• Durable construction for industrial environments

• Accessible components for inspection and maintenance

• Customizable configurations for different rail systems

These features allow project engineers and procurement teams to select a fastening configuration according to the rail profile, expected loading, available clearance, and installation conditions.

Applications Across Multiple Industries

The product range is intended for a variety of industrial rail systems.

Automated Warehousing: Compact adjustable rail clips can be integrated into automated material-handling and logistics equipment where installation space is limited.

Steel Plants: Heavy-duty rail fastening can support crane rail installations operating in demanding production environments.

Ports and Wharves: Outdoor crane systems require fastening components selected for mechanical loading as well as environmental exposure.

Shipyards: Rail-mounted cranes can benefit from fastening systems designed for heavy equipment and accessible maintenance.

Logistics Systems: Adjustable clips provide flexibility for rail systems used in material movement and industrial automation.

Support Beyond Individual Rail Components

Industrial customers often need more than a standard fastening product. Rail profile selection, track layout, installation conditions, and maintenance requirements all need to work together.

Sinchold provides integrated rail system capabilities covering R&D, design, manufacturing, installation, and maintenance. This enables customers to discuss rail fastening requirements as part of a broader industrial rail project.

For OEMs, engineering contractors, system integrators, and industrial equipment users, application-specific communication with the manufacturer can help determine the appropriate clip configuration.

Product Selection Based on Project Requirements

Selecting a rail clip should be based on actual project conditions rather than relying only on nominal product dimensions.

Before placing an order, customers should consider the rail specification, expected horizontal and vertical loads, foundation design, equipment type, operating environment, installation clearance, and required corrosion protection.

Sinchold's adjustable bolted rail clips provide options for different rail applications, from compact light-rail systems to heavy-duty crane installations.

With multiple configurations and integrated rail system services, Sinchold provides a practical fastening solution for companies developing or upgrading industrial crane rail systems.
