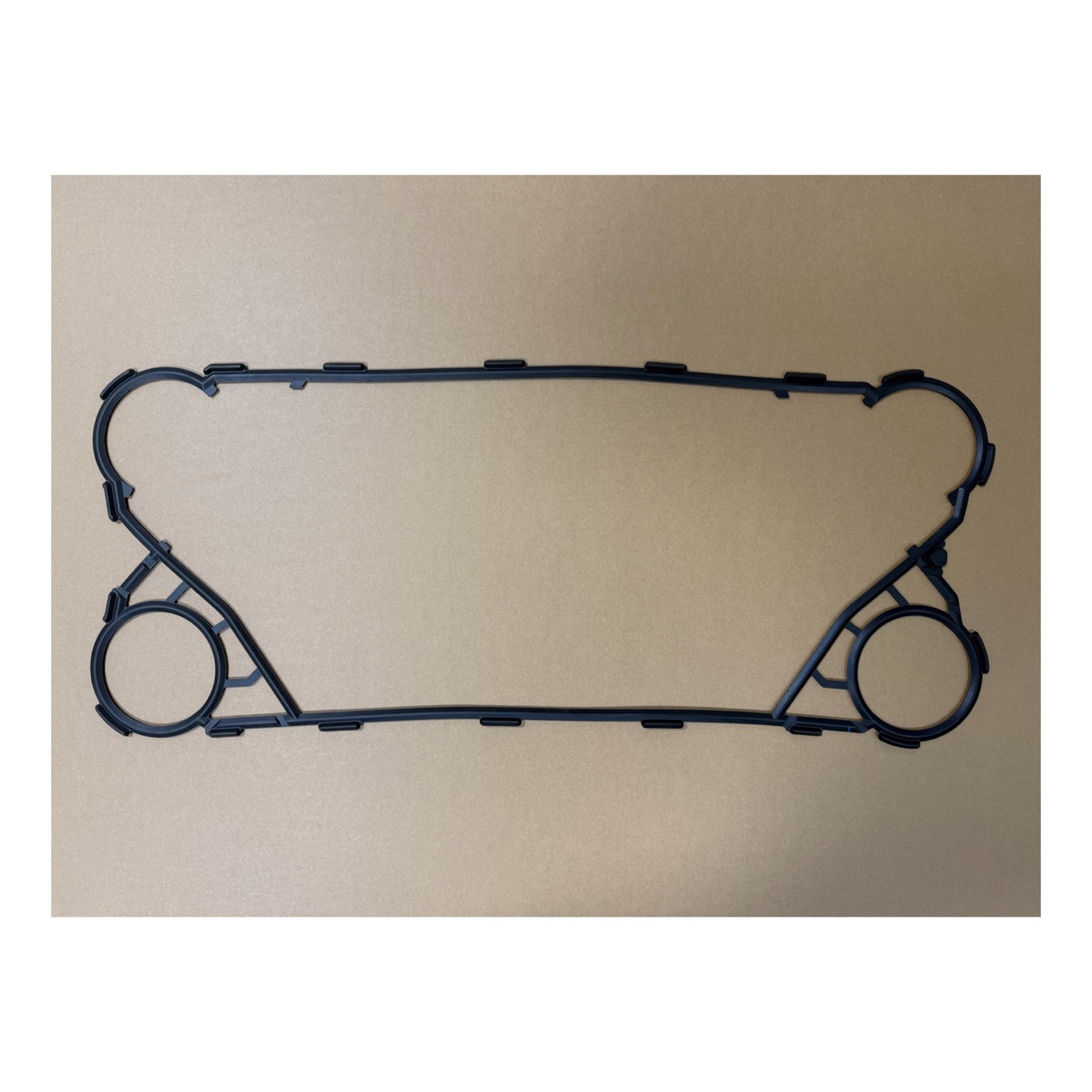

S22 Plate Heat Exchanger Gasket

The S22 plate heat exchanger gasket is a critical sealing component designed to maintain a reliable seal between plates in plate heat exchanger systems. By helping prevent fluid leakage and keeping the individual flow channels properly separated, the gasket plays an important role in maintaining stable heat transfer during continuous operation.

As plate heat exchangers are used in refrigeration, HVAC, chemical processing, marine equipment, data center cooling, and other industrial applications, gasket selection needs to match the operating conditions of the system. Kreat supplies S22 plate heat exchanger gaskets in several rubber materials, including NBR, EPDM, Viton, and HNBR, providing practical options for different media, temperatures, and working environments.

The S22 gasket is suitable for routine maintenance, gasket replacement, equipment servicing, and spare parts procurement.

What Is the Function of an S22 Plate Heat Exchanger Gasket?

A plate heat exchanger consists of multiple plates assembled together to form alternating fluid channels. The gasket is installed around the sealing area of each plate and helps separate the different flow paths.

During operation, the gasket needs to maintain contact with the plate surface under the system's working conditions. A properly fitted gasket helps prevent fluids from leaking externally or mixing between adjacent channels.

This makes the gasket more than a simple replacement component. Its sealing condition can directly influence the reliability and operating performance of the entire plate heat exchanger.

When an existing gasket becomes hardened, damaged, deformed, or loses its sealing capability after extended service, replacing it with a suitable S22 gasket can help restore the sealing function of the equipment.

Multiple Rubber Materials for Different Working Conditions

Different plate heat exchanger applications involve different fluids, temperatures, and operating environments. Therefore, a single gasket material cannot necessarily meet every requirement.

Kreat provides S22 plate heat exchanger gaskets in four commonly used rubber materials:

NBR Gasket

NBR is a practical choice for applications where good resistance to oils and petroleum-based fluids is required. It provides reliable sealing performance for many general industrial applications and is widely used in heat exchanger maintenance.

EPDM Gasket

EPDM offers good resistance to water, steam, and a variety of environmental conditions. It is commonly considered for HVAC, refrigeration, and water-based heat transfer systems where compatibility with the working medium is appropriate.

Viton Gasket

Viton is selected for applications that require stronger resistance to elevated temperatures and demanding chemical environments. It can be considered when the operating conditions exceed the requirements of more conventional gasket materials.

HNBR Gasket

HNBR provides enhanced resistance to heat, oil, and mechanical conditions compared with standard nitrile rubber. It is an option for more demanding applications where additional material performance is required.

The appropriate material should be selected according to the actual medium, temperature, pressure, and operating conditions of the plate heat exchanger.

Reliable Sealing for Plate Heat Exchanger Operation

The primary function of the S22 gasket is to maintain separation between the fluid channels and reduce the risk of leakage.

A properly selected and correctly installed gasket can help:

• Maintain separation between adjacent fluid channels

• Reduce the possibility of external leakage

• Support stable heat exchanger operation

• Protect against unnecessary fluid loss

• Maintain reliable sealing during operation

• Extend the practical service life of the heat exchanger assembly

Gasket condition is particularly important in systems that operate continuously. A small sealing problem can develop into a larger maintenance issue if it is not identified and addressed in time.

Designed for Replacement and Heat Exchanger Maintenance

Plate heat exchangers are often designed to allow maintenance and gasket replacement without replacing the complete heat exchanger. This makes replacement gaskets an important part of routine equipment servicing.

The S22 plate heat exchanger gasket can be used as a replacement component when the original gasket has reached the end of its service life.

Common reasons for gasket replacement include:

• Aging after long-term operation

• Loss of elasticity

• Hardening or deformation

• Leakage around the plate

• Maintenance following plate inspection

• Preventive maintenance requirements

• Replacement during equipment refurbishment

Before ordering replacement gaskets, users should confirm the heat exchanger model, gasket configuration, dimensions, material, and operating conditions to ensure proper compatibility.

Long Service Life and Stable Fit

A gasket must maintain a stable fit within the plate's sealing groove. Poor dimensional compatibility can affect installation and sealing performance, even when the rubber material itself is suitable.

The S22 gasket is manufactured for reliable fitting and consistent sealing. Combined with the appropriate rubber compound, this helps provide dependable performance during normal heat exchanger operation.

The actual service life of a gasket depends on factors such as operating temperature, pressure, fluid characteristics, cleaning procedures, installation quality, and frequency of operation. Selecting the correct material and following proper installation practices are therefore essential.

Applications of S22 Plate Heat Exchanger Gaskets

Because S22 gaskets are available in different rubber materials, they can be used across a range of plate heat exchanger applications.

Refrigeration Systems

In refrigeration equipment, plate heat exchangers are used for transferring heat between refrigerants and secondary fluids. Suitable gaskets help maintain reliable separation and sealing within the exchanger.

HVAC Systems

Heating and cooling systems rely on stable heat transfer for temperature control. S22 gaskets can be used during maintenance and replacement of plate heat exchangers in HVAC equipment.

Marine Equipment

Marine heat transfer systems can operate in demanding environments where equipment reliability is important. Properly selected gasket materials can support sealing performance during regular operation and maintenance.

Chemical Industry

Chemical processes may involve different fluids and operating temperatures. Choosing NBR, EPDM, Viton, or HNBR according to media compatibility provides a more suitable sealing solution.

Data Center Cooling

Data centers require continuous cooling to maintain stable operating conditions for critical equipment. Plate heat exchangers used in cooling systems need dependable sealing components to support uninterrupted heat transfer operation.

Industrial Heat Transfer Systems

Industrial facilities use plate heat exchangers for heating, cooling, and process heat recovery. Replacement S22 gaskets provide a practical option for scheduled maintenance and equipment servicing.

How to Choose the Right S22 Gasket Material

Material selection should be based on the actual working environment rather than simply choosing the most commonly used rubber.

Before purchasing an S22 gasket, consider the following factors:

1. Working Medium
Identify the liquid, gas, refrigerant, oil, chemical solution, or other medium in contact with the gasket.

2. Operating Temperature
Temperature has a direct effect on rubber performance. The gasket material should be suitable for the system's normal and maximum operating temperatures.

3. Operating Conditions
Pressure, flow conditions, cleaning procedures, and operating frequency should also be considered.

4. Material Compatibility
The selected rubber needs to be chemically compatible with the working medium to reduce premature deterioration.

5. Heat Exchanger Configuration
Confirm the plate model and gasket configuration before ordering a replacement gasket.

Why Choose Kreat S22 Plate Heat Exchanger Gaskets?

Kreat is a professional plate heat exchanger manufacturer and supplier integrating product research and development, application design, manufacturing, sales, and technical services.

In addition to S22 plate heat exchanger gaskets, Kreat provides a broad range of detachable plate heat exchangers, heat exchanger plates, and maintenance services. This product and service capability allows customers to source both replacement components and complete heat exchanger solutions from an experienced supplier.

For maintenance companies, equipment operators, distributors, and industrial users, having access to suitable gasket materials and replacement components can simplify routine servicing and reduce unnecessary equipment downtime.

The S22 plate heat exchanger gasket is an essential replacement and maintenance component for maintaining reliable sealing between heat exchanger plates. Its main advantages include good sealing performance, reliable fit, long service life, and availability in NBR, EPDM, Viton, and HNBR materials.

With different material options available, the S22 gasket can be selected for refrigeration, HVAC, marine, chemical, data center cooling, and industrial heat transfer applications according to the specific working conditions.

For replacement projects or routine plate heat exchanger maintenance, choosing the correct gasket material and configuration is an important step toward maintaining reliable system performance.
