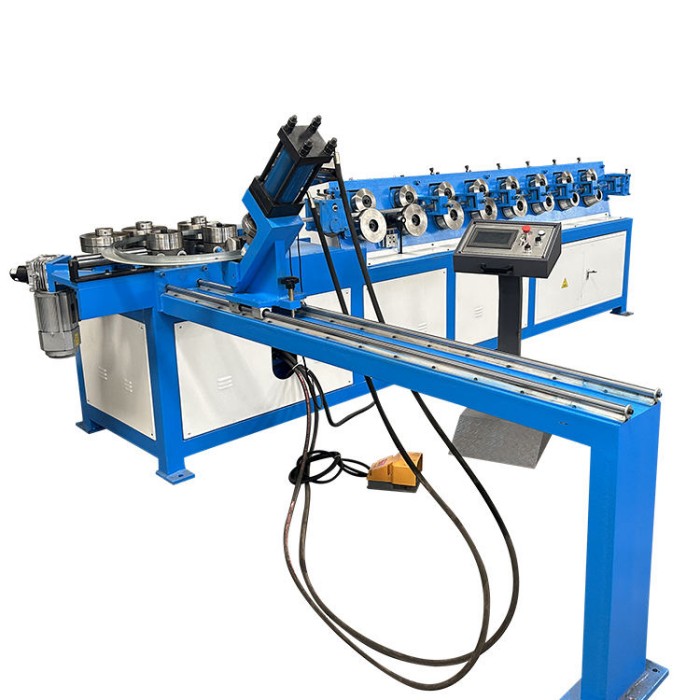

Round Duct Flange Forming Machine
The Round Flange Punching Machine is a fully automatic CNC device for flange processing. Driven by a servo motor, it auto-positions accurately for flanges
Round Duct Flange Forming Machine
|
Model |
Sheet thickness(mm) |
Diameter(mm) |
Power(kw) |
Dimensions(mm) |
Weight(kg) |
|
HCY-B200 |
1.8-4 |
200-2000 |
14 |
4000*3000*1400MM |
2500 |
|
Model |
Sheet thickness(mm) |
Diameter(mm) |
Power(kw) |
Dimensions(mm) |
Weight(kg) |
|
HCY-B200 |
1.8-4 |
200-2000 |
14 |
4000*3000*1400MM |
2500 |
Features of Round Flange Punching Machine
-
High Automation & Precision: Fully automatic CNC device driven by a servo motor, enabling automatic and accurate positioning for flanges (diameter range φ250～φ3600mm) with an indexing accuracy of ±0.1mm.
-
User – Friendly Operation & Efficient Molds: Equipped with a user – friendly TFT interface for easy operation; adopts H13K molds (hardness HRC60°) that support quick change, enhancing production flexibility.
-
Stable Structure for Long – term Precision: Double – beam four – point support design ensures stable punching precision over long – term use, prolonging equipment service life.
-
Application & Efficiency Boost: Specialized in air duct round flange hole processing, reducing material waste and significantly improving production efficiency.
-
Wide Specification Adaptation: Taking model HCY – B200 as an example, it can process flanges with sheet thickness of 1.8 – 4mm and diameter of 200 – 2000mm, with a power of 14kw, equipment dimensions of 4000*3000*1400MM, and weight of 2500kg, suitable for various production needs.
FAQ
Q: Factory or trading company?
A: Professional direct manufacturer.
Q: Not sure how to operate the machine?
A: Multiple support options:
-
Attached detailed operation manual.
-
Our engineers on-site, or your team trained at our factory.
-
24/7 Phone & Email support.
Q: What payment terms do you accept?
A: Support T/T, L/C, Western Union. Other methods negotiable by mutual agreement.
Q: Machine warranty period?
A: 1 year.
-
Main parts: high tool steel with special quenching (anti-corrosion, wear-resistant).
-
Free replacement for quality-related broken parts.
Q: Do you have stock?
A: Yes. Over 100 units in stock for quick delivery.
Q: How do you control quality?
A: Quality first. Strict control through the entire production process.
Q: Shipping cost from China to us?
A: Sea/air to your port/door. Provide your nearest port/address (with postcode) for quote. Reliable agents ensure safe, on-time delivery.
