QAT185 High Temperature Energy Sensors

In the oil and gas industry, exploration and drilling operations are becoming increasingly challenging. Deeper wells, higher temperatures, stronger vibration, and more complex underground environments require measurement equipment that can maintain stable performance under extreme conditions.

Traditional accelerometers often face limitations when exposed to high-temperature and high-impact environments. For applications such as measurement-while-drilling (MWD), survey-while-drilling, and cable logging, reliable acceleration measurement is essential for improving drilling accuracy and operational efficiency.

Honeywell’s Q-Flex High Temperature Accelerometers, including the QAT185 and Mini Q series, are designed specifically for demanding energy applications. Based on aerospace-grade Q-Flex technology, these accelerometers provide excellent stability, durability, and temperature resistance for harsh oil and gas environments.

The Importance of High Temperature Accelerometers in Oil and Gas Applications

During deep-well exploration and drilling, downhole equipment must operate under extreme conditions, including:

• High temperatures

• Strong vibration

• Mechanical shock

• Limited installation space

• Continuous operation requirements

Accurate acceleration measurement plays an important role in:

• Well trajectory monitoring

• Drilling direction control

• Downhole navigation

• Geological data collection

• Equipment performance monitoring

A high-performance accelerometer must maintain accuracy despite environmental changes. This is why specialized high-temperature sensing technology is becoming increasingly important in modern energy exploration.

Advanced Q-Flex Quartz Sensing Technology

The core advantage of Honeywell Q-Flex accelerometers comes from the proven Q-Flex Etched Quartz Bending Inertia System.

This aerospace-grade sensing structure uses an amorphous quartz calibrated mass system, providing excellent:

• Bias stability

• Scale factor stability

• Axis alignment stability

• Long-term measurement reliability

Compared with conventional acceleration sensors, quartz-based technology provides stronger environmental resistance and improved precision in demanding operating conditions.

This makes Q-Flex accelerometers particularly suitable for applications where measurement accuracy directly affects operational decisions.

Designed for High Temperature Downhole Environments

Oil and gas exploration often requires sensors to operate deep underground where temperatures can rise significantly.

The QAT185 high-temperature accelerometer is engineered for these challenging environments.

Key temperature performance includes:

• Operating temperature: -40°C to 185°C

• Withstand temperature: up to 200°C

This capability enables stable operation in high-temperature drilling environments while maintaining reliable acceleration output.

The rugged design helps reduce measurement errors caused by thermal changes and improves overall system reliability.

Reliable Performance for Survey-While-Drilling Applications

Survey-while-drilling requires accurate real-time information about the position and orientation of drilling equipment.

The Q-Flex high-temperature accelerometer supports these applications by providing precise acceleration measurement for:

• Inclination calculation

• Tool orientation

• Downhole positioning

• Navigation system support

Stable sensor output helps drilling operators make better decisions and improve drilling efficiency, especially in complex well conditions.

Excellent Stability Through Temperature Compensation

Temperature changes can significantly affect sensor performance.

To address this challenge, Honeywell Q-Flex accelerometers include an integrated current-output temperature sensor.

Through advanced temperature compensation algorithms, the system improves:

• Bias performance

• Scale factor accuracy

• Axis alignment stability

This allows the accelerometer to maintain consistent measurement performance across a wide temperature range.

For oil and gas applications, where environmental conditions can change rapidly, temperature compensation is essential for reliable operation.

Flexible Analog Output and Adjustable Measurement Range

The Q-Flex accelerometer provides analog current output proportional to acceleration.

Users can customize the acceleration range according to specific application requirements by adjusting the output load resistor, converting current signals into voltage signals.

This flexibility allows easier integration into different electronic systems and provides engineers with greater design freedom.

The adjustable range feature makes the accelerometer suitable for various energy exploration platforms and specialized measurement equipment.

Rugged Design for Harsh Industrial Conditions

Downhole environments place significant mechanical demands on electronic components.

Honeywell QAT and Mini Q accelerometers are designed with a robust structure to withstand:

• Continuous vibration

• Mechanical shock

• High operating temperatures

• Long-duration field operation

Strict manufacturing standards and quality control processes ensure dependable performance throughout the product lifecycle.

This reliability has made Q-Flex technology a preferred choice for high-specification oil and gas applications.

Flexible Mounting Options for System Integration

Installation requirements can vary depending on equipment design.

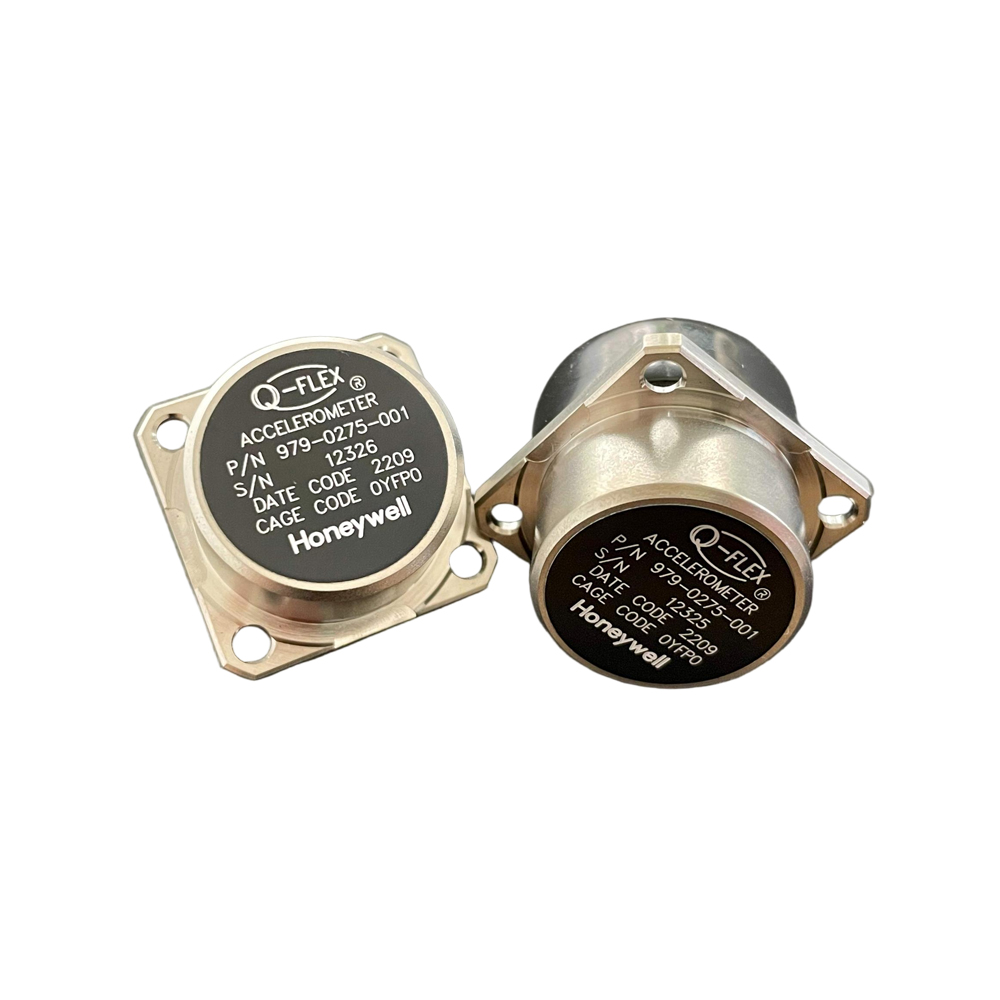

The QAT185 series provides multiple mounting options, including:

• Square flange

• Round flange

• Larger round flange

These options allow engineers to select the appropriate configuration based on equipment structure and installation requirements.

Flexible mechanical design simplifies integration into different downhole tools and exploration systems.

Low Power Consumption and Built-In Testing Capability

Energy-efficient operation is important for downhole instruments where power resources are limited.

Q-Flex accelerometers feature low-power circuitry, helping extend system operating time while maintaining measurement performance.

Additional built-in testing capabilities support:

• System diagnostics

• Performance verification

• Maintenance efficiency

These features help operators improve equipment reliability and reduce downtime during field operations.

Applications of Q-Flex High Temperature Accelerometers

Honeywell Q-Flex accelerometers are widely used in:

Oil and Gas Exploration

Applications include:

• Survey-while-drilling systems

• Cable logging equipment

• Downhole measurement tools

• Directional drilling systems

Energy Measurement Systems

Their high-temperature capability and stable output make them suitable for specialized energy exploration equipment requiring precise acceleration data.

Key Advantages of Honeywell Q-Flex Accelerometers

The main benefits include:

• High temperature resistance

• Rugged industrial design

• Aerospace-grade quartz sensing technology

• Analog acceleration output

• Adjustable measurement range

• Internal temperature compensation

• Low power consumption

• Multiple mounting options

• Built-in testing functions

These advantages make Q-Flex accelerometers a reliable choice for engineers developing advanced oil and gas measurement systems.

Conclusion

As oil and gas exploration continues moving toward deeper and more complex operating environments, reliable high-temperature sensing technology has become increasingly important.

Honeywell Q-Flex High Temperature Accelerometers provide the accuracy, stability, and durability required for demanding applications such as survey-while-drilling and cable logging.

With aerospace-proven quartz sensing technology, advanced temperature compensation, rugged construction, and flexible integration options, QAT185 and Mini Q accelerometers deliver dependable acceleration measurement performance for modern energy exploration systems.
