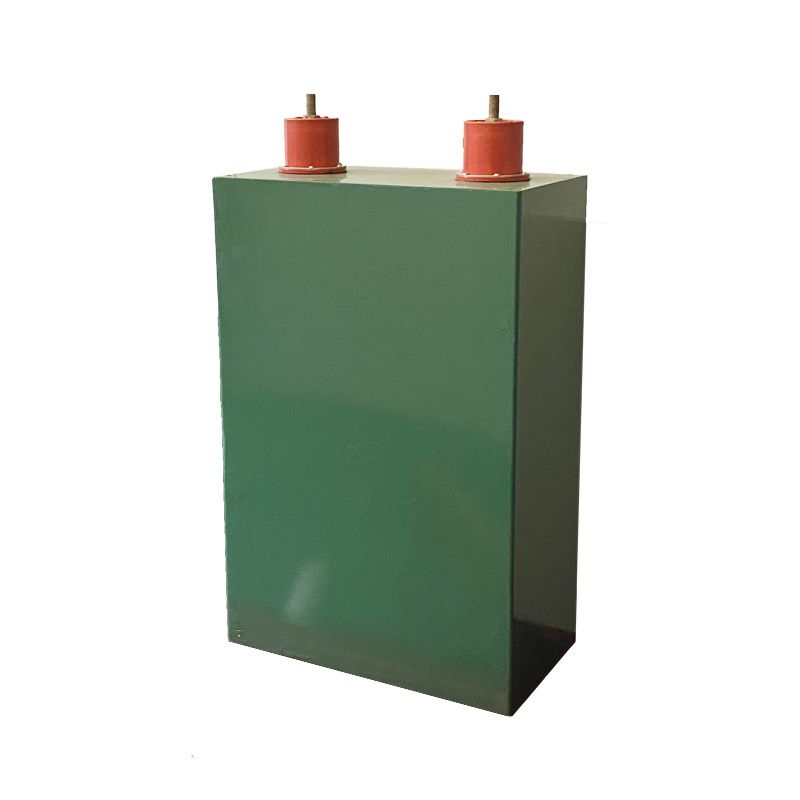

Pulse Capacitor

1. Product Introduction

The Pulse Capacitor is a specialized electrical component designed to store electrical energy and release it within a very short period, typically from microseconds to milliseconds depending on the circuit design. This rapid discharge capability supports high peak power and high peak current requirements in pulse power systems, aerospace equipment, and other demanding electrical applications.

With a rated DC voltage range of 1–100 kV and capacitance options from 1 to 10,000 μF, these capacitors can be configured for different energy storage and pulse discharge requirements. The product is designed for applications where controlled energy release, electrical performance, and operational reliability are important.

Manufacturing options include dry-type construction and resin potting, with rectangular enclosures available in austenitic stainless steel or iron plate. Enclosure-free configurations may also be available depending on the design. Customers should confirm the required electrical characteristics, discharge conditions, installation environment, and mechanical dimensions before ordering.

Wuxi Power Filtering Co., Ltd. specializes in the research, development, and production of power electronic capacitors, pulse capacitors, self-healing high-voltage power capacitors, power filtering devices, and reactive power compensation equipment. The company also provides power quality management solutions for industrial and electrical power applications.

2. Key Features and Advantages

Rapid Energy Discharge

Designed to store electrical energy and release it over a short interval, supporting pulse power circuits that require high instantaneous power or current.

Wide Rated Voltage Range

Rated DC voltage options range from 1 kV to 100 kV, allowing configuration for different high-voltage pulse applications.

Flexible Capacitance Selection

Rated capacitance options range from 1 μF to 10,000 μF. The appropriate capacitance depends on the required stored energy, voltage, pulse duration, and discharge circuit.

Broad Operating Temperature Range

The specified operating temperature range is -45°C to +110°C. Actual allowable temperature limits depend on the final design, operating conditions, and cooling arrangements.

Multiple Construction Options

Available construction options include dry-type and resin-potted designs. Enclosure choices include rectangular austenitic stainless steel or iron plate housings, as well as enclosure-free designs where applicable.

Designed for Repeated Pulse Operation

The expected lifespan is specified as 100,000 cycles. Actual service life depends on voltage, pulse current, discharge frequency, temperature, and other operating conditions.

Application-Specific Configuration

Electrical ratings, enclosure structure, insulation requirements, and connection arrangements should be selected according to the pulse power system and installation environment.

3. Main Technical Specifications

Important: The voltage, capacitance, temperature, and cycle-life values above are the supplied product specifications. They do not establish a single universal configuration. Confirm the exact rated parameters, allowable pulse current, peak discharge current, pulse repetition rate, equivalent series resistance (ESR), equivalent series inductance (ESL), insulation level, and safety requirements for the selected model.

4. Operating Principle

A pulse capacitor stores energy in an electric field and releases it when connected to a suitable discharge circuit. Unlike capacitors intended mainly for continuous filtering or power-factor correction, pulse capacitors are selected for their ability to withstand specific transient electrical stresses and deliver energy over a controlled time interval.

The stored energy can be calculated using:

[
E=frac{1}{2}CV^2
]

Where:

• (E) is stored energy in joules.

• (C) is capacitance in farads.

• (V) is the voltage across the capacitor in volts.

For example, stored energy increases with both capacitance and the square of voltage. However, the actual energy delivered to a load depends on the discharge circuit, component losses, operating voltage, and system configuration.

When selecting a Pulse Capacitor, engineers should evaluate not only rated voltage and capacitance but also peak current, pulse duration, repetition rate, waveform, permissible temperature rise, and expected operating cycles.

5. Construction and Configuration Options

Enclosure Options

The specified housing options include rectangular enclosures made of austenitic stainless steel or iron plate. An enclosure-free configuration may also be considered where supported by the design.

The housing material and mechanical structure should be selected according to installation conditions, environmental exposure, electrical clearances, and mechanical requirements.

Impregnation and Insulation Construction

Two construction options are specified:

• Dry type: Suitable for designs developed around a dry construction approach.

• Resin potting: Uses resin potting as part of the assembly construction.

The suitability of each option depends on voltage level, insulation requirements, thermal performance, environmental conditions, and the intended discharge duty.

Electrical Configuration

The rated voltage and capacitance should be selected to match the system's stored-energy target and discharge requirements. Additional electrical parameters and connection details must be confirmed with the manufacturer before final design approval.

6. Applications

Pulse Power Supply Systems

Used in pulse power equipment requiring energy storage and rapid discharge. The capacitor configuration must match the power supply's pulse waveform, voltage, current, and repetition rate.

Aerospace Equipment

Potential applications include specialized aerospace electrical and pulse power systems where the component's electrical, environmental, and mechanical qualifications meet project requirements.

Military and Defense Systems

Pulse capacitors may be used in specialized defense-related electrical systems. Suitability depends on the required qualification standards, environmental conditions, electrical duty, and customer specifications.

Scientific and Industrial Equipment

Applicable to specialized equipment that requires high-energy electrical pulses, provided the capacitor ratings and protection arrangements meet the system's design requirements.

7. Selection and Engineering Considerations

To select an appropriate pulse capacitor, provide the following information:

1. Rated voltage: Specify the required DC operating voltage and any transient overvoltage conditions.

2. Capacitance: Define the capacitance needed to achieve the target stored energy.

3. Pulse waveform: Provide pulse duration, waveform shape, discharge current, and peak power requirements.

4. Repetition rate: Specify the number of pulses per second or per operating cycle.

5. Lifetime requirement: Confirm the required number of cycles and the intended operating profile.

6. Operating temperature: Identify ambient temperature, expected internal temperature rise, and cooling conditions.

7. Mechanical construction: Specify enclosure material, dimensions, mounting requirements, and terminal arrangement.

8. Insulation requirements: Confirm dielectric strength, insulation coordination, and applicable safety standards.

9. Environmental conditions: Identify vibration, humidity, altitude, and other environmental factors where relevant.

The final design should be validated against the complete electrical duty cycle. Rated voltage and capacitance alone are insufficient to determine whether a capacitor is suitable for a particular pulse power system.

8. Quality and Reliability Considerations

Pulse capacitor performance depends on electrical design, materials, construction quality, and the conditions under which the component operates. For demanding applications, customers should request technical documentation covering the selected model's electrical ratings, test conditions, and allowable operating limits.

The specified expected lifespan of 100,000 cycles should be evaluated against the actual voltage, current, repetition rate, and temperature profile. It should not be interpreted as a guaranteed service life under all operating conditions.

Before procurement, confirm the applicable product standards, routine test requirements, insulation test data, acceptance criteria, and any special qualification requirements.

9. About Wuxi Power Filtering Co., Ltd.

Wuxi Power Filtering Co., Ltd., formerly the Power Filtering Research Institute of Wuxi Power Capacitor Co., Ltd., is a technology-driven enterprise specializing in capacitor technology, power filtering equipment, and reactive power compensation solutions. Following a shareholding reform in 1994, the company was officially established.

Its product portfolio includes power electronic capacitors, pulse capacitors, self-healing high-voltage power capacitors, power filtering devices, and shunt capacitor compensation installations. The company also provides solutions for power quality management.

The company operates a built-up area of approximately 20,000 square meters and has a production base in Tongling, Anhui Province. It works with research institutions and universities on capacitor technology and related electrical equipment development.

Its products serve industrial and mining enterprises, power systems, rail transit, and other specialized sectors. The company is recognized as a National High-Tech Enterprise and a Wuxi City Specialized, Sophisticated, and Innovative Enterprise.

10. Frequently Asked Questions

Q1: What is a pulse capacitor used for?
A pulse capacitor stores electrical energy and releases it rapidly to support electrical systems that require short-duration, high-power or high-current pulses.

Q2: What voltage and capacitance ranges are available?
The supplied specifications list rated DC voltage from 1 to 100 kV and rated capacitance from 1 to 10,000 μF. Confirm available combinations and model-specific ratings with the supplier.

Q3: What is the operating temperature range?
The specified range is -45°C to +110°C. The allowable range for a particular model should be confirmed according to the operating duty and installation conditions.

Q4: What construction options are available?
The specified options are dry-type and resin-potted construction, with rectangular stainless steel or iron plate housings or an enclosure-free design where available.

Q5: What is the expected service life?
The stated expected lifespan is 100,000 cycles. Actual life depends on operating voltage, pulse current, temperature, repetition rate, and other application conditions.

Q6: Can the capacitor be customized?
The product can be discussed according to application requirements. Confirm the availability of customized voltage, capacitance, dimensions, terminals, enclosure, and construction options with the manufacturer.

Q7: What information is needed for a quotation?
Provide rated voltage, capacitance, pulse waveform, peak current, pulse duration, repetition rate, operating temperature, expected cycle life, installation requirements, and required documentation.

11. Ordering Information

For product selection and quotation, please provide:

• Required rated DC voltage

• Required capacitance

• Target stored energy or pulse power

• Peak discharge current and pulse duration

• Pulse repetition rate

• Operating temperature range

• Expected number of operating cycles

• Enclosure and construction requirements

• Installation dimensions and terminal arrangement

• Applicable testing, qualification, and documentation requirements

Contact Wuxi Power Filtering Co., Ltd. to discuss the technical requirements of your pulse power system and confirm the suitable product configuration.

Choose the Pulse Capacitor for application-specific energy storage and rapid discharge requirements in specialized high-power electrical systems.
