Progressive Die Stamping: High-Efficiency Metal Forming for Modern Manufacturing

Progressive die stamping has become one of the most efficient and widely used metal forming technologies in today’s manufacturing industry. It enables the production of complex metal components with high precision, excellent repeatability, and extremely fast cycle times. For industries such as automotive, electronics, appliances, and industrial equipment, this process is a cornerstone of large-scale production.

One of the manufacturers specializing in metal stamping and forming solutions is Hehua Manufacturing, which provides customized progressive die stamping services for a wide range of industrial applications.

What Is Progressive Die Stamping?

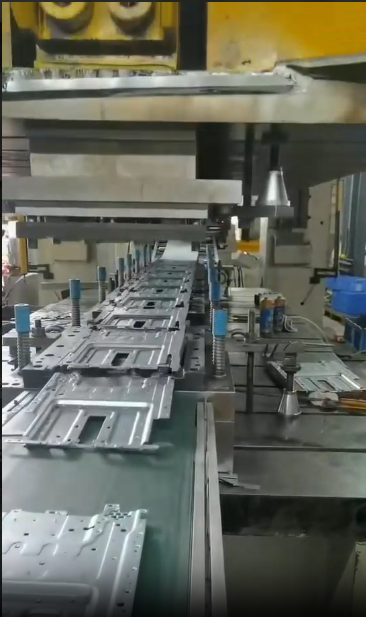

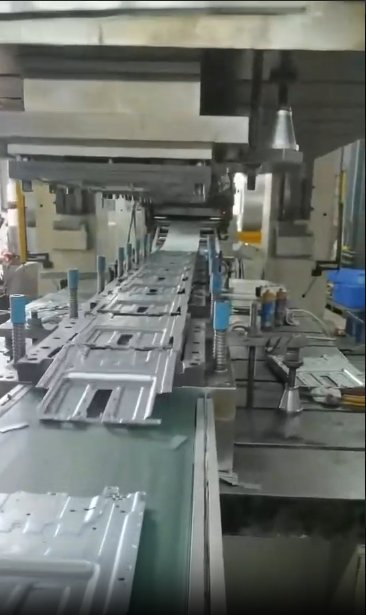

Progressive die stamping is a cold-forming process where a coil of sheet metal is fed through a series of stations inside a progressive die. Each station performs a different operation—such as punching, bending, forming, trimming, or cutting—until the final part is completed and separated from the strip.

Unlike single-stage stamping methods, progressive die stamping completes multiple operations in one continuous cycle, significantly improving production efficiency and consistency.

How the Progressive Die Stamping Process Works

The process typically includes the following steps:

1. Coil Feeding

Metal strips or coils are fed into the stamping press at a controlled feed rate. This ensures consistent positioning and alignment throughout production.

2. Progressive Tool Stations

As the strip moves forward, it passes through multiple stations inside the die:

• Punching holes or slots

• Blanking the part profile

• Bending or forming features

• Coining or embossing surfaces

Each press stroke advances the strip to the next stage.

3. Final Cut-Off

At the final station, the finished component is separated from the carrier strip, completing the manufacturing cycle.

This integrated workflow allows manufacturers to produce high volumes of identical parts with minimal manual intervention.

Key Advantages of Progressive Die Stamping

1. High Production Efficiency

Once the tooling is set up, progressive die stamping can produce thousands of parts per hour with consistent quality.

2. Lower Unit Cost in Mass Production

Although the initial tooling cost is higher, the per-part cost becomes very low in large-volume production.

3. Excellent Dimensional Accuracy

Because all operations are completed within a single die system, alignment errors are minimized.

4. Reduced Material Waste

Optimized strip layouts help maximize material utilization and reduce scrap.

5. High Repeatability

Each part is produced under identical conditions, ensuring stable quality across long production runs.

Common Applications

Progressive die stamping is widely used across multiple industries, including:

• Automotive components (brackets, connectors, reinforcements)

• Electrical terminals and connectors

• Appliance metal parts

• Industrial hardware and structural components

• Consumer electronics housings and internal supports

Its versatility makes it suitable for both simple and highly complex metal parts.

Progressive Die Design Importance

The success of progressive stamping depends heavily on die design. Key factors include:

• Strip layout optimization

• Proper station sequencing

• Material flow control

• Tool steel selection and durability

• Scrap removal and feeding stability

Well-designed progressive dies ensure smooth production, reduced downtime, and long tool life.

Why Choose a Professional Manufacturer?

Choosing an experienced manufacturer is essential for achieving stable and cost-effective production. A professional supplier can provide:

• Custom progressive die design and manufacturing

• Engineering support for part optimization

• Prototype and pre-production sampling

• High-volume stamping capabilities

• Quality control and inspection systems

Hehua Manufacturing offers integrated services including CNC machining, sheet metal fabrication, welding, and metal stamping, supporting customers from prototype development to mass production.

Industrial Capabilities

Modern manufacturing providers like Hehua Manufacturing typically support:

• CNC machining and precision tooling

• Metal stamping & forming

• Sheet metal fabrication

• Welding and assembly processes

• Mold and fixture design and production

These capabilities allow customers to streamline supply chains and reduce production complexity.

Conclusion

Progressive die stamping remains one of the most efficient and scalable metal forming processes available today. It combines speed, precision, and cost-effectiveness, making it ideal for high-volume production across multiple industries.

With advanced manufacturing capabilities and engineering support, companies such as Hehua Manufacturing provide reliable solutions for custom progressive die stamping projects, helping global customers achieve consistent quality and production efficiency.
