Portal Scraper Reclaimer for Efficient Bulk Material Handling

A portal scraper reclaimer is an important piece of equipment for continuous bulk material recovery from large stockpiles. It is widely used in steel plants, power plants, ports, mining operations, cement plants, and other bulk material handling facilities. By combining a portal structure, scraper system, traveling mechanism, and discharge conveyor, the machine can efficiently reclaim stored materials and deliver them to downstream conveying systems.

What Is a Portal Scraper Reclaimer?

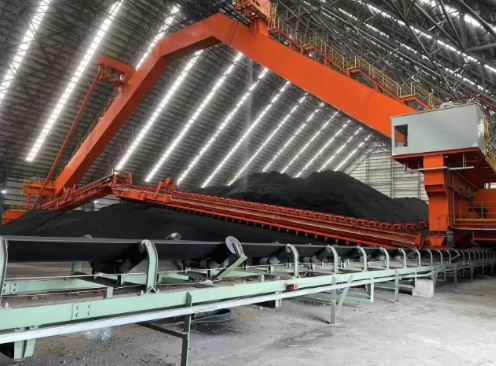

A portal scraper reclaimer is designed to recover bulk materials from stockpiles in a controlled and continuous manner. During operation, scraper chains and flights move through the stockpile, collect material, and transport it toward the discharge area. At the same time, the entire machine travels along rails, allowing the scraper system to cover a large stockpile area.

The performance of a portal scraper reclaimer depends on several engineering parameters, including scraper chain speed, machine travel speed, scraper configuration, and discharge arrangement. These factors need to be matched with the material characteristics and stockyard layout.

Main Components of a Portal Scraper Reclaimer

A complete portal scraper reclaimer consists of several integrated systems. The portal structure provides the main supporting framework and enables the machine to span the stockpile. The scraper system is responsible for collecting and moving material toward the discharge point.

The drive system supplies the required power for scraper operation, while the traveling mechanism allows the equipment to move along rails. A discharge and conveyor system then transfers the reclaimed material to the next stage of the bulk handling process. Electrical and control systems coordinate machine operation and provide control and monitoring functions.

Key Advantages

One of the major advantages of portal scraper reclaimers is continuous reclaiming. Unlike intermittent material recovery methods, the scraper mechanism can continuously move bulk material from the stockpile to the discharge system.

Another important feature is large stockpile coverage. Because the machine travels along rails and uses a portal structure, it can serve extensive storage areas. High reclaiming capacity also makes portal scraper reclaimers suitable for industrial facilities where large quantities of raw materials must be handled efficiently. In addition, the equipment can be integrated with existing bulk material conveying systems, helping create a continuous material flow from storage to processing.

Industrial Applications

Portal scraper reclaimers are used in a variety of industries. In steel plants, they can reclaim raw materials stored in stockyards for subsequent processing. Power plants may use them for recovering bulk fuel materials from storage areas.

At ports and bulk terminals, scraper reclaimers support the handling of large quantities of stored bulk commodities. Mining and mineral processing facilities can also use them for recovering and transporting mineral materials. Cement plants represent another important application where reliable stockpile reclaiming is required.

Manufacturing and Engineering Considerations

Manufacturing a portal scraper reclaimer requires coordination between structural fabrication, mechanical manufacturing, assembly, electrical integration, and inspection. The equipment must be engineered according to the actual operating conditions of the project.

Important design parameters include required capacity, stockpile dimensions, material type, bulk density, moisture content, particle size, machine span, rail gauge, travel speed, scraper chain speed, discharge direction, and available installation space. These factors directly influence the machine's configuration and operating performance.

Customization is often necessary because stockyards and materials vary from project to project. A portal scraper reclaimer can be configured according to requirements such as span, stockpile height, rail gauge, reclaiming capacity, scraper arrangement, drive system, discharge direction, electrical and control method, and conveyor compatibility.

Choosing a Portal Scraper Reclaimer Manufacturer

Selecting the right manufacturer is an important part of a bulk material handling project. Buyers should consider the supplier's engineering capabilities, manufacturing experience, product quality, customization capacity, installation and commissioning services, spare-parts support, and technical assistance.

Experience with similar materials, stockyards, and industrial applications can also be valuable. Production capability and previous project experience should be evaluated to ensure that the manufacturer can deliver equipment that matches the technical requirements of the project.

DADI Equipment is a manufacturer of bulk material conveying and metallurgical equipment, with products including portal scraper reclaimers, semi-portal scraper reclaimers, bridge-type scraper reclaimers, and stackers. Its services cover engineering design, manufacturing, installation, commissioning, and electrical, hydraulic, and control systems. The company has experience working with steel enterprises, metallurgical design institutes, and international engineering companies.

Installation, Commissioning, and Maintenance

Proper installation and commissioning are essential for reliable operation. The process includes assembling the portal structure, traveling mechanism, scraper system, drives, electrical equipment, and control systems, followed by connections to the rails and conveying equipment.

Before operation, commissioning should verify machine movement, scraper operation, electrical systems, safety functions, and material discharge performance. Regular maintenance should focus on scraper chains, flights, sprockets, bearings, shafts, gearboxes, motors, wheels, brakes, lubrication systems, and electrical components. Rail and wheel alignment should also be checked to maintain stable machine travel.

Conclusion

Portal scraper reclaimers provide an effective solution for continuous bulk material recovery from large stockpiles. Their combination of continuous scraping, rail-mounted travel, high reclaiming capacity, and conveyor integration makes them suitable for steel, power, port, mining, cement, and other bulk material handling applications.

With proper engineering, customized configuration, professional manufacturing, and effective commissioning and maintenance, a portal scraper reclaimer can become an important part of a reliable bulk material handling system.
