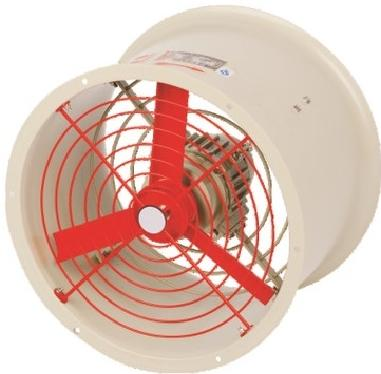

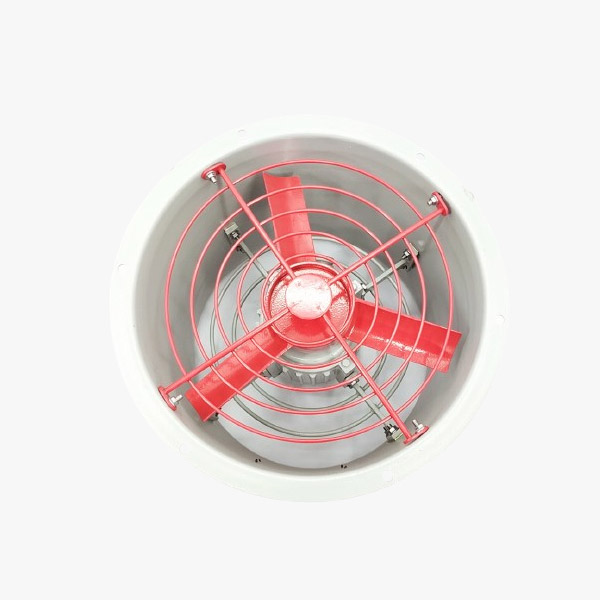

M13-CBF explosion-proof axial flow fan
◆Applicable to Zone 1 and Zone 2 of explosive gas environment;
◆Applicable to IA , I Class B explosive gas environment;
◆Applicable to temperature groups T1 to T4 environment;
◆Applicable to explosive hazardous environments such as oil refining, storage, chemical industry,
medicine, military industry and military facilities .
Introduction
◆Applicable to Zone 1 and Zone 2 of explosive gas environment;
◆Applicable to IA , I Class B explosive gas environment;
◆Applicable to temperature groups T1 to T4 environment;
◆Applicable to explosive hazardous environments such as oil refining, storage, chemical industry,
medicine, military industry and military facilities

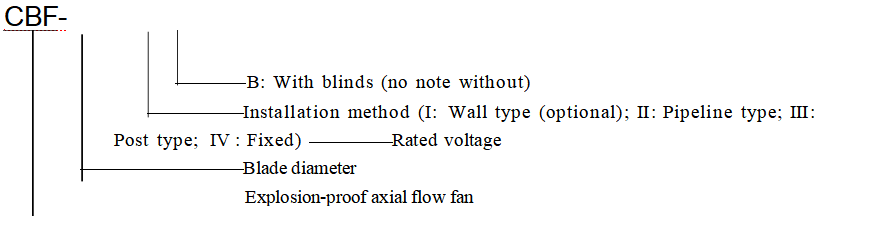

Type meaning
Order Notice
◆The louvers of this series of fans are detachable and can be installed by users according to their needs.
For example, if you need to order a CBF explosion-proof axial flow fan with a fan diameter of 600 mm, a rated voltage of 220 V,
a ducted installation method, and no louvers, the order model number should be "CBF-600/220Ⅱ".
Selection Table
|
model |
Blade diameter (mm) |
Air volume (m³/h) |
Rated power ( kW ) |
Explosion-proof signs |
|
CBF-300 |
300 |
2280 |
0.18 |
Exd ||BT4 Gb |
|
CBF-400 |
400 |
2880 |
0.37 |
|
|
CBF-500 |
500 |
5700 |
0.55 |
|
|
CBF-600 |
600 |
8700 |
0.75 |
Features
◆The explosion-proof axial flow fan consists of explosion-proof motor, fan blades, air cylinder and other parts.
◆The air cylinder of the explosion-proof axial flow fan is welded from high-quality steel plates, the blades are cast from aluminum alloy, and the surface is sprayed with high-voltage electrostatic plastic.
◆According to user requirements: there are four installation methods to choose from: wall type, pipe type, post type and fixed type.
◆Steel pipe or cable wiring.
Technical parameters
Implementation standard: GB 3836.1 , GB 3836.2 , IEC60079-0 , IEC60079-1
Explosion-proof mark: Exd| Ⅱ BT4 Gb
Rated voltage: AC 220/380V
Spindle speed: 1450 r/min
Corrosion resistance grade: WF 1
Inlet specification: G3/4"
Applicable cable outer diameter: φ9 mm ~ Φ14 mm

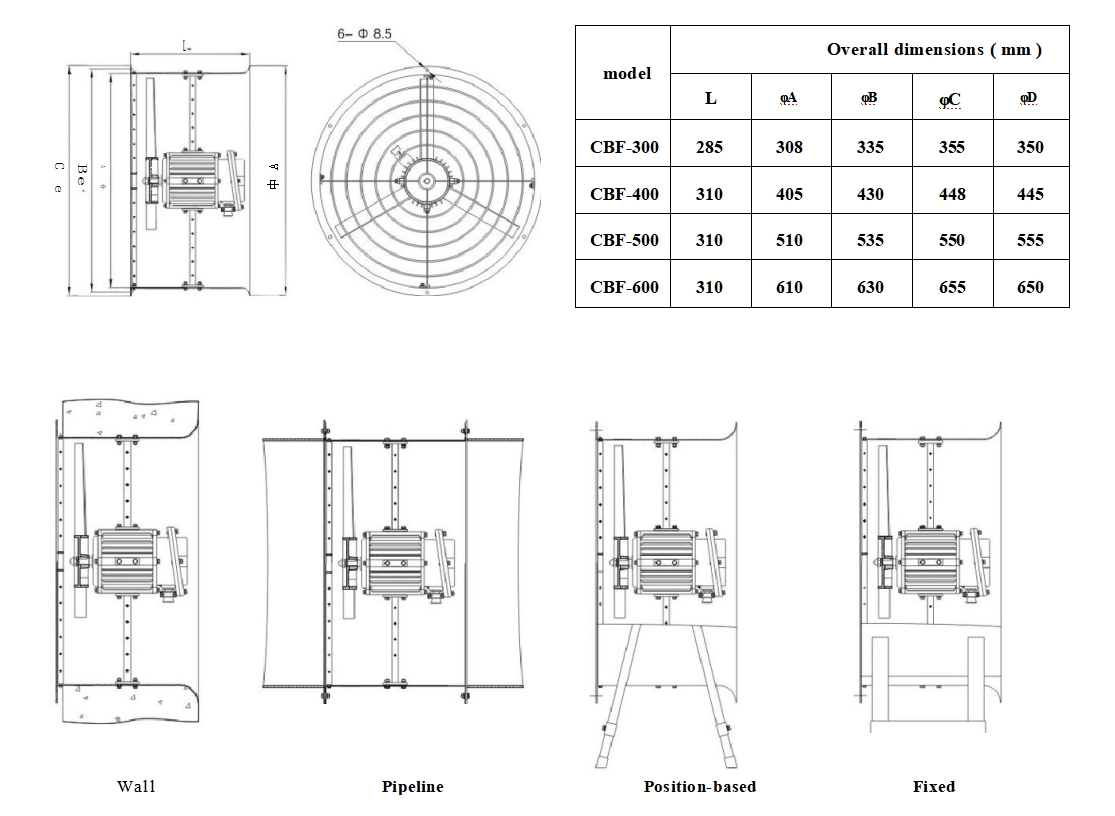

Dimensions&installation method
For more details, please refer to the sample
