Jinko Tiger Neo N-type 54HL4R-(V)425w,430w,435w,440w,445w

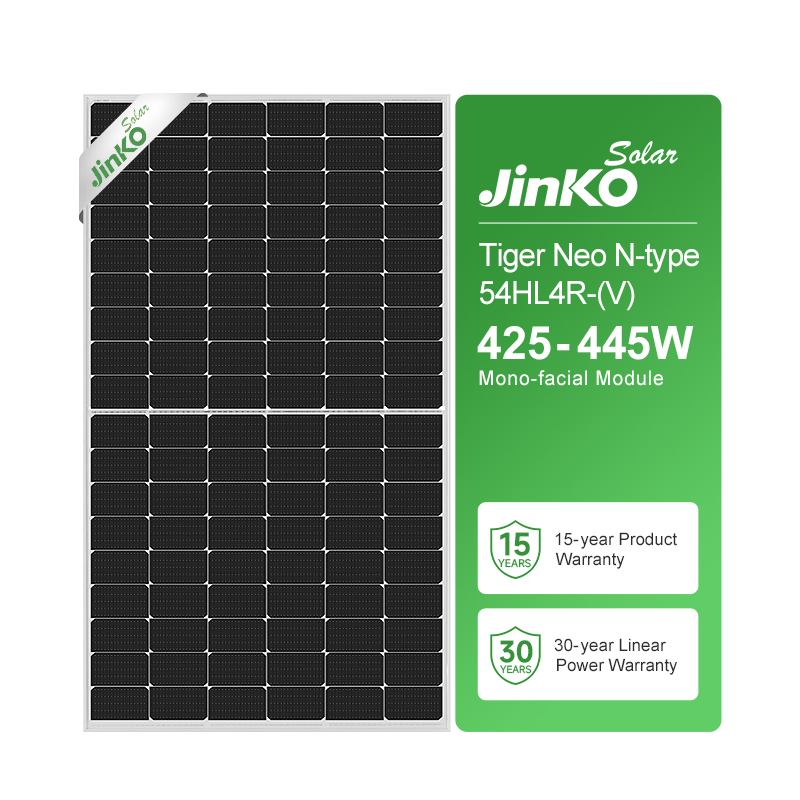

Jinko Tiger Neo N-Type 54HL4R-V Solar Panel 425W–445W
Product Overview
The Jinko Tiger Neo N-type 54HL4R-V solar panel is a high-output monocrystalline module designed for residential, commercial, and utility-scale solar power systems. Available in power ratings from 425W to 445W, it combines N-type cell technology with SMBB and Hot 2.0 technologies to support efficient power generation, stable performance, and long-term module reliability.
Advanced N-Type Monocrystalline Cell Technology
Built with N-type monocrystalline cells, the Tiger Neo 54HL4R-V series is designed to deliver strong energy conversion performance and consistent power generation. The advanced cell architecture helps the module maintain useful output under different lighting conditions, making it suitable for a wide range of photovoltaic installations.
With 108 cells arranged in a 2×54 configuration, the module provides a practical balance between power output, dimensions, and system integration.
SMBB Technology for Improved Module Performance
The SMBB (Super Multi Busbar) technology improves light utilization and current collection within the module. By optimizing the electrical connection structure, it helps support higher module power output while contributing to overall module reliability.
This technology is particularly useful for solar projects where stable energy production and efficient use of available sunlight are important considerations.
Hot 2.0 Technology for Greater Reliability
The Hot 2.0 technology incorporated into the N-type module is designed to enhance long-term reliability while reducing the effects associated with LID and LETID. Combined with the N-type cell platform, it provides a more stable foundation for photovoltaic systems operating over extended periods.
Strong Resistance to PID and Environmental Conditions
The Jinko Tiger Neo N-type 54HL4R-V solar panel features optimized materials and production processes to provide strong resistance to potential-induced degradation (PID). This helps support stable module performance in demanding installation environments.
The panel is also designed with enhanced resistance to environmental exposure, including:
-
High salt mist resistance
-
High ammonia resistance
-
Wind load resistance up to 2400 Pa
-
Snow load resistance up to 5400 Pa
-
Tempered front glass for enhanced module protection
These characteristics make the module suitable for a variety of residential, commercial, and utility-scale solar projects.
Mechanical Specifications
| Specification | Details |
|---|---|
| Cell Type | N-Type Monocrystalline |
| Number of Cells | 108 (2×54) |
| Module Dimensions | 1762 × 1134 × 30 mm |
| Dimensions in Inches | 69.36 × 44.65 × 1.18 in |
| Module Weight | 22 kg / 48.50 lbs |
| Front Glass | 3.2 mm tempered glass, anti-reflection coating, high transmission, low iron |
| Frame | Anodized aluminum alloy |
| Junction Box | IP68 rated |
| Output Cables | TUV 1×4.0 mm, (+) 400 mm, (-) 200 mm |
| Cable Length | Customized options available |
Flexible Power Options for Solar Projects
The Tiger Neo N-type 54HL4R-V series is available in multiple power configurations, including 425W, 430W, 435W, 440W, and 445W. This range allows solar project designers and system integrators to select a suitable module output according to installation requirements and overall system design.
The compact module dimensions and standardized construction also make it convenient for integration into different photovoltaic layouts.
Applications of Jinko Tiger Neo Solar Panels
The Jinko Tiger Neo N-type solar panel can be used across a range of photovoltaic applications, including:
-
Residential rooftop solar systems
-
Commercial and industrial rooftop projects
-
Utility-scale photovoltaic installations
-
Distributed solar power systems
-
Other customized solar energy projects
Its combination of N-type technology, SMBB design, Hot 2.0 technology, and environmental resistance makes it suitable for projects where reliable module performance is a key consideration.
A Practical Choice for Modern PV Systems
The Jinko Tiger Neo N-type 54HL4R-V series brings together advanced cell technology, optimized current collection, mechanical strength, and environmental resistance in a compact solar module. With multiple power ratings from 425W to 445W and customizable cable lengths, it can accommodate different photovoltaic system configurations.
For solar distributors, installers, and project developers looking for a high-output N-type monocrystalline module, this series provides a versatile option for residential, commercial, and utility-scale applications.
