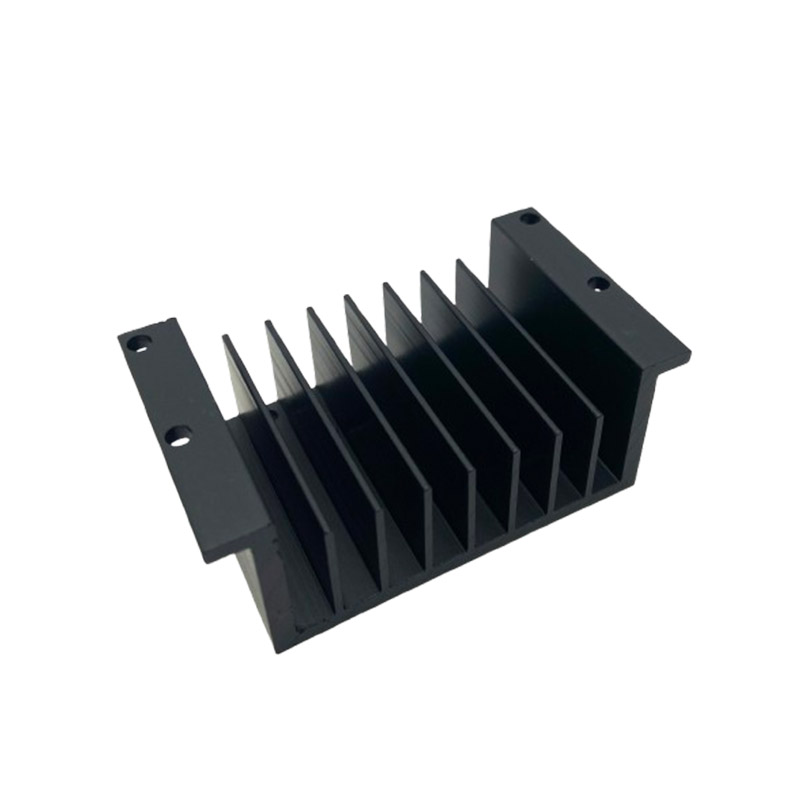

High precision black aluminium heatsink

Advantages of Black Aluminum Extrusion Heatsinks

Cost-Effective Production:

Utilizing aluminum extrusion, these heatsinks offer a lower cost per unit compared to fully CNC machined counterparts, making them ideal for high-volume applications.

Enhanced Aesthetics:

The black anodized finish not only provides a sleek, modern appearance but also offers additional corrosion resistance, ensuring durability in various environments.

Uniform Heat Dissipation:

The uniform cross-sectional design of extruded heatsinks ensures consistent heat distribution across the entire surface, optimizing thermal performance.

Customizable Options:

While extrusion limits design to uniform profiles, secondary CNC machining can be applied to add mounting holes, flatness adjustments, and other critical features, balancing customization with cost efficiency.

Manufacturing Process of Black Aluminum Extrusion Heatsinks

Material Selection:

Typically, 6061 or 6063 aluminum alloys are used due to their excellent balance of thermal conductivity, mechanical strength, and cost.

Extrusion:

The aluminum billet is heated to approximately 500°C and forced through a die to form the desired finned profile. The extruded profile is then cooled and cut to the required length.

Secondary Operations:

CNC machining is employed to add precision features such as flatness milling, drilling, tapping, and fin trimming. This step ensures the heatsink meets tight tolerances and functional requirements.

Finishing:

The final step involves anodizing the heatsink to achieve the black finish, enhancing both its aesthetic appeal and corrosion resistance.

Applications of Black Aluminum Extrusion Heatsinks

Electronics Cooling:

Ideal for cooling components in computers, servers, and other electronic devices where heat management is critical.

LED Lighting:

Provides efficient heat dissipation for LED fixtures, ensuring long-term performance and reliability.

Consumer Electronics:

Used in a variety of consumer products where thermal management is necessary, such as gaming consoles and high-performance laptops.

Packaging and Shipping

FAQs

Q1: What are the benefits of the black anodized finish?

The black anodized finish enhances the heatsink's corrosion resistance and provides a visually appealing surface. It also helps in dissipating heat more effectively by increasing the emissivity of the surface.

Q2: Can the design be customized?

Yes, while the extrusion process limits the design to uniform cross-sections, secondary CNC machining can be used to add specific features such as mounting holes and flatness adjustments.

Q3: How does the thermal performance compare to fully CNC machined heatsinks?

Extruded heatsinks with secondary machining offer good thermal performance at a lower cost. However, fully CNC machined heatsinks may provide slightly better performance due to their optimized geometries and material properties.

Q4: What is the typical lead time for black anodized aluminum extrusion heatsinks?

The lead time depends on the complexity of the design and the volume of the order. Generally, extrusion-only heatsinks have a shorter lead time, while those requiring additional CNC machining will take longer.
