High-Power N-Type Utility Solar Panels for Large-Scale Solar Projects

As utility-scale solar projects continue to expand worldwide, choosing reliable and high-output modules has become increasingly important for developers, EPC contractors, distributors, and project owners. High-power utility solar panels can help improve energy yield while making better use of available installation space.

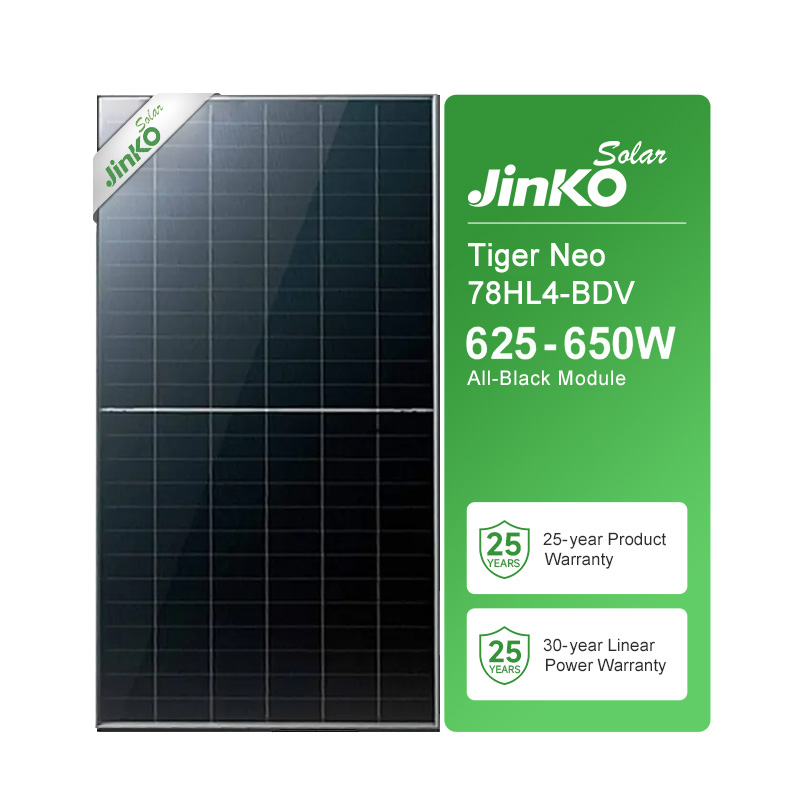

The Jinko 78HL4M-BDV series is designed around N-type monocrystalline cell technology and a half-cut cell configuration, providing a practical solution for large-scale photovoltaic applications where long-term performance and efficient power generation are key considerations.

N-Type Monocrystalline Technology for Stable Solar Performance

The module uses N-type monocrystalline solar cells, a technology widely adopted in modern high-efficiency photovoltaic modules. Compared with traditional P-type technologies, N-type cells can offer improved resistance to light-induced degradation, helping maintain more consistent module performance over the operating lifetime of a solar installation.

For utility-scale projects, long-term energy output is an important factor when evaluating module selection. The use of N-type technology provides a strong foundation for applications requiring dependable electricity generation over extended operating periods.

Half-Cut Cell Design for Better Module Reliability

This solar module contains 156 cells arranged in a 2×78 configuration. The half-cut cell structure divides the electrical current path into smaller sections, which can help reduce current-related losses and improve the module's overall operating characteristics.

The design can also provide better resistance to the impact of partial shading compared with conventional full-cell configurations. This makes the module suitable for large solar installations where environmental conditions may vary across the array.

For utility solar projects, a well-designed cell layout can contribute to more consistent power generation and improved system-level performance.

Double-Sided Power Generation for Greater Energy Potential

The module features a bifacial structure, allowing the rear side of the panel to capture usable reflected and scattered sunlight in addition to direct solar radiation received on the front surface.

This characteristic can be particularly useful in utility-scale installations where factors such as ground reflectivity, mounting height, row spacing, and site conditions can influence rear-side irradiance.

Depending on project design and environmental conditions, bifacial modules can provide additional energy-generation potential without requiring additional module installation area.

Durable Glass Construction for Outdoor Applications

The front of the module uses 2.0 mm glass with an anti-reflection coating, helping improve light transmission while providing protection for the photovoltaic cells.

A 2.0 mm heat-strengthened glass layer is used on the rear side. Together with the anodized aluminum alloy frame, this construction is intended to provide structural protection for long-term outdoor operation.

The module is also equipped with an IP68-rated junction box, offering a high level of protection against dust and water ingress when installed according to the applicable requirements.

Designed for Utility-Scale Solar Installations

With dimensions of 2465 × 1134 × 30 mm and a weight of approximately 34.0 kg, this module is designed for large photovoltaic systems as well as other applications requiring high-power solar modules.

Its combination of N-type monocrystalline cells, half-cut architecture, bifacial generation, and durable glass construction makes it suitable for a variety of applications, including:

• Utility-scale solar power plants

• Commercial and industrial photovoltaic systems

• Ground-mounted solar farms

• Large distributed solar installations

• Renewable energy development projects

• Agricultural and other large-area PV applications

For project developers, module selection should be evaluated together with the mounting structure, inverter configuration, local climate, installation conditions, and overall system design.

Why Consider High-Power Utility Solar Panels?

Large photovoltaic projects often need to balance power output, installation space, system design, and long-term operating performance. Higher-power modules can help reduce the number of modules required to achieve a targeted system capacity, potentially simplifying array configuration and installation planning.

At the same time, module performance should not be judged solely by rated wattage. Cell technology, module construction, temperature characteristics, degradation behavior, mechanical design, and site conditions all influence the actual energy yield of a solar project.

For this reason, N-type bifacial modules with half-cut cell architecture are becoming an important option for modern utility-scale photovoltaic applications.

A Practical Module Choice for Large Solar Projects

The Jinko 78HL4M-BDV combines N-type monocrystalline technology, 156-cell half-cut architecture, bifacial power generation, anti-reflection front glass, heat-strengthened rear glass, and an IP68-rated junction box in a module designed for demanding outdoor photovoltaic applications.

For buyers sourcing utility solar panels, these features provide a practical starting point for evaluating module suitability according to project capacity, installation environment, expected energy yield, and system configuration.

As solar projects continue moving toward higher power density and improved energy efficiency, selecting the right photovoltaic module remains an important part of building a reliable and productive solar generation system.
