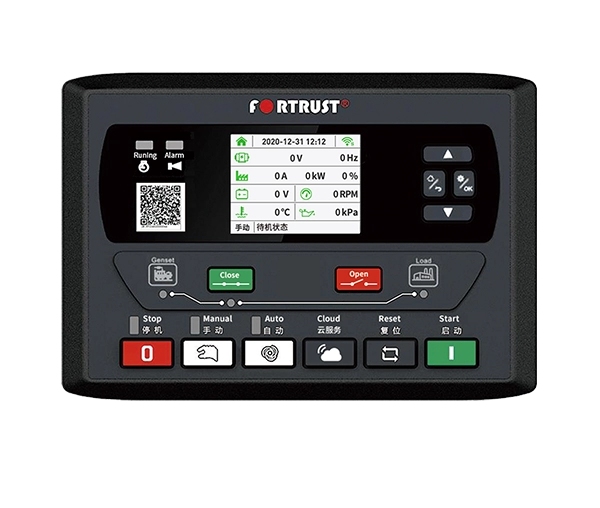

GEC6100D Series Genset Controller

The GEC6100D Series Genset Controller is designed for automatic control and monitoring of single generator sets. It provides reliable generator start/stop control, operating parameter monitoring, alarm protection, and convenient parameter configuration for different genset applications.

The GEC6100D Series includes two models: GEC6110D for single-unit automation and GEC6120D for applications requiring mains monitoring and Automatic Mains Failure (AMF) control. The controller is suitable for diesel generator sets used as standby or independent power sources.

Product Overview

The GEC6100D Series provides an integrated control solution for generator set automation. The controller can manage generator starting and stopping according to configured control signals while monitoring key operating conditions.

The GEC6110D is designed for single generator automation and can control the start and stop of the genset through remote start signals. The GEC6120D adds mains power monitoring and AMF functionality, making it suitable for applications where automatic switching between utility power and generator power is required.

With a practical control interface and configurable operating parameters, the GEC6100D Series can simplify generator operation while supporting reliable monitoring and protection.

Key Features

• Automatic start and stop control for generator sets

• Remote start and stop control

• Generator operating parameter monitoring

• Alarm and protection functions

• Mains power monitoring on GEC6120D

• Automatic Mains Failure (AMF) control on GEC6120D

• Parameter setting and adjustment

• Real-time clock and historical record functions

• USB and RS485 interfaces for configuration or communication

• Compact design for generator control panel integration

• Suitable for single-generator automation applications

GEC6110D and GEC6120D

GEC6110D Single Genset Controller

The GEC6110D is designed for single-machine automation. It controls generator start and stop operations through remote signals and monitors the operating condition of the generator set.

It is suitable for applications where the generator needs to operate automatically according to an external start command without automatic utility power detection.

GEC6120D AMF Genset Controller

The GEC6120D provides the functions of the GEC6110D while adding mains power detection and Automatic Mains Failure control.

When utility power fails or operates outside the configured conditions, the controller can initiate the generator start sequence and manage the corresponding power transfer process. This makes the GEC6120D suitable for standby power applications requiring automatic utility-to-generator operation.

Measurement and Monitoring

The GEC6100D Series is designed to monitor important generator operating parameters and provide information through the controller interface. Parameter measurement and configurable thresholds help operators identify abnormal operating conditions and respond to potential faults.

For applications requiring additional communication and remote monitoring, the controller provides communication interfaces such as RS485. The official GEC series documentation also provides installation and operation manuals for the GEC6100D Series.

Protection and Alarm Functions

Generator sets may encounter abnormal conditions during starting or operation. The GEC6100D Series integrates alarm and protection functions to help monitor operating conditions and provide timely warnings when configured limits or fault conditions are reached.

These functions help operators identify generator abnormalities, reduce the risk of improper operation, and support more reliable generator set management.

Communication and Configuration

The GEC6100D Series supports convenient parameter configuration and communication. USB and RS485 interfaces can be used according to the model and application requirements.

The controller allows operating parameters and control settings to be configured for different generator applications, helping users adapt the controller to specific genset requirements.

Applications

The GEC6100D Series can be used for various single-generator automation applications, including:

• Diesel generator sets

• Standby generator sets

• Backup power equipment

• Industrial generator sets

• Commercial standby power

• Automatic generator control panels

• Single genset automation

• Utility failure backup power applications

• AMF generator applications

For applications requiring automatic utility monitoring and generator power switching, the GEC6120D is particularly suitable. For remote-start single-generator automation, the GEC6110D provides a more focused control solution.

Technical Specifications

The GEC6100D Series specification data is based on Fortrust's official GEC6100D documentation; interface and communication functions should be confirmed against the specific model before project integration.

Why Choose GEC6100D Series?

The GEC6100D Series combines generator start/stop control, monitoring, alarm protection, and configurable parameters in a compact genset controller. Its two-model configuration allows users to select a controller according to the automation requirements of the generator application.

For basic remote-start generator automation, GEC6110D provides the required single-unit control functions. For standby applications requiring utility monitoring and automatic mains failure control, GEC6120D provides additional AMF functionality.

The GEC6100D Series is therefore suitable for generator manufacturers, control panel builders, power equipment integrators, and end users looking for a practical controller for single genset automation.

Product Benefits

Reliable Generator Control
Provides automatic start and stop control for single generator sets and supports remote start signals.

Flexible Application Options
Two models allow users to select basic single-unit automation or enhanced mains monitoring and AMF functionality.

Comprehensive Monitoring
Supports measurement and monitoring of important generator and electrical parameters.

Convenient Configuration
USB and RS485 interfaces support parameter configuration and communication according to the selected model.

Backup Power Automation
The GEC6120D helps automate generator operation when utility power fails, making it suitable for standby power applications.

Typical Control Process

For a basic GEC6110D application:

Remote Start Signal → Generator Start → Operating Parameter Monitoring → Generator Operation → Stop Signal → Generator Shutdown

For a GEC6120D AMF application:

Utility Power Monitoring → Utility Failure Detection → Generator Start → Generator Operation → Automatic Power Transfer → Utility Recovery → Return to Utility Power → Generator Shutdown

GEC6100D Series for Generator Automation

The GEC6100D Series provides a practical controller solution for single generator sets where automatic operation, monitoring, and protection are required. With GEC6110D and GEC6120D options, the series can cover both remote-start automation and utility failure backup applications.

Fortrust also lists the GEC6100D Installation and Operation Manual in its official GEC Series controller documentation library for product installation, operation, and technical reference.
