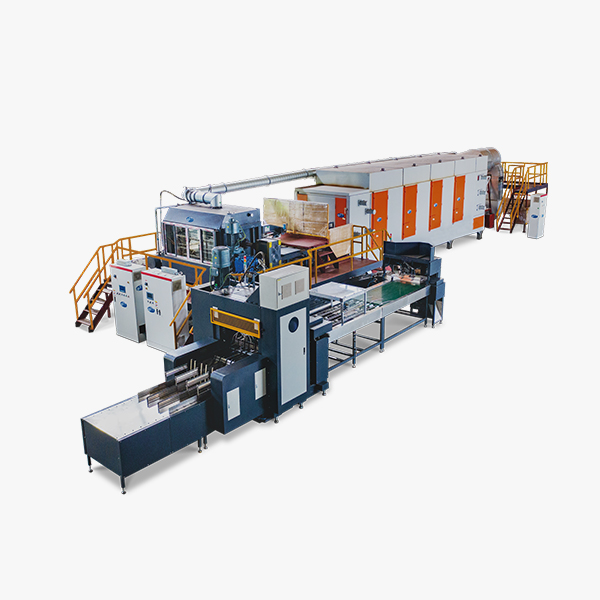

The equipment is designed for continuous wet blank forming and preheating of egg trays, combining molding, drying, and hot pressing processes into an integrated production system. With a four-sided drum-type molding structure and continuous conveying design, it supports efficient production of 10-egg and 12-egg cartons while maintaining consistent forming quality.
The system is suitable for automated egg tray production lines requiring stable output, controlled drying, and efficient use of production space.
Main Equipment Features
Four-Sided Drum Molding Structure: The molding template adopts a four-sided drum configuration, allowing continuous forming and improving production efficiency.
High-Speed Forming: The molding section operates at approximately 15 plates per minute, supporting stable continuous production.
Integrated Preheating and Drying: The system combines wet blank molding with preheating and drying to improve production continuity and finished product consistency.
Heavy-Duty Hot Pressing: The hot pressing section provides up to 30T of pressure to help achieve uniform forming and structural strength.
Flexible Heating Options: The drying system can use natural gas, LPG, or diesel according to the customer's available energy source and production conditions.
Efficient Circulation System: A 55KW circulation fan helps distribute heated air throughout the drying section for more uniform drying performance.
Product & Molding Specifications
Molding Template: Four-sided drum structure
Template Size: 1900 × 400 mm
Output per Mold: 6 pieces for 10/12-egg boxes
Molding Speed: 15 plates/minute
Tray Specification: 1900 × 330 mm
Hot Pressing Pressure: 30T
Production Configuration: 1 out of 3 pieces, 10/12-egg boxes
Main Components
Feeding Section: 4000 mm
Front Section: 1500 mm
Middle Section: 10500 mm
Rear Section: 1500 mm
Tail Section: 4300 mm
Overall Equipment Dimensions: 21800 × 3250 × 5200 mm
Circulation Fan: 1 unit, 55KW
Insulation Layer Thickness: 100 mm
Drying Energy Options: Natural Gas / LPG / Diesel
Motor & Reducer Power: 18.5KW
Heating Power: 32.4KW
Drive Motor Power: 0.55KW
Production Models
EC2700
Output Capacity: 2700 pcs/hour
Required Floor Area: 45 × 24 m
Building Height: ≥4 m
Staff Required: 4 persons/shift
Electricity Consumption: 150–180 KW/hour
Water Consumption: 0.4–0.6 tons/hour
EC5400
Output Capacity: 5400 pcs/hour
Required Floor Area: 60 × 24 m
Building Height: ≥4 m
Staff Required: 4 persons/shift
Electricity Consumption: 240–280 KW/hour
Water Consumption: 1.6–1.8 tons/hour
EC9600
Output Capacity: 9600 pcs/hour
Required Floor Area: 70 × 24 m
Building Height: ≥4 m
Staff Required: 6 persons/shift
Electricity Consumption: 360–420 KW/hour
Water Consumption: 2–3 tons/hour
Application
This wet blank molding and preheating system is designed for automated molded pulp egg tray production. The combination of continuous forming, controlled preheating, drying, and hot pressing makes it suitable for manufacturers producing 10-egg and 12-egg packaging products at different production capacities.
The EC series provides several capacity options, allowing manufacturers to select an equipment configuration according to their required output, available workshop space, labor arrangement, and utility conditions.
