Fully Automatic General Industrial packaging Pulp molding production line
Pulp Molding Industrial Packaging Production Line
A pulp molding industrial packaging production line is an integrated manufacturing system for producing molded pulp packaging in different shapes and sizes. It can be used to manufacture packaging trays, cartons, paper bowls, cardboard products, and other molded fiber packaging solutions.
By using pulp-based raw materials such as waste paper and cardboard, the production line provides an alternative to conventional packaging materials while supporting customized product designs for different industries.
Protective Packaging for Different Products
Molded pulp packaging can be formed into structures that fit specific products, helping provide protection during handling, transportation, and storage.
The production line can be used to manufacture packaging for products that require additional cushioning and separation, including:
-
Electronic products
-
Glass products
-
Ceramics
-
Fragile goods
-
Industrial components
-
Other products requiring molded protective packaging
The ability to produce different shapes and dimensions allows packaging manufacturers to adapt the finished products to specific product sizes and transportation requirements.
Fiber-Based Packaging with Environmental Benefits
The primary raw materials used in pulp molding production are renewable fiber resources such as waste paper and cardboard. Compared with conventional plastic packaging, molded pulp products can provide a fiber-based alternative for applications where suitable packaging performance is required.
After use, pulp-based packaging can also enter recycling streams where appropriate, helping reduce material waste and supporting more resource-efficient packaging practices.
Customized Packaging Design
Different products require different packaging structures. A pulp molding production line can manufacture products with customized shapes, dimensions, and layouts according to the requirements of the final application.
Customized molded packaging can help manufacturers develop packaging that fits specific products more closely while improving space utilization during transportation and storage.
The production process can therefore support packaging solutions for different industries rather than being limited to a single product format.
Supporting Product Presentation and Brand Value
Packaging serves more than a protective function. Its appearance, structure, and overall quality can also influence how a product is presented to customers.
A well-designed molded pulp package can combine functional protection with a clean appearance, helping businesses develop packaging that is consistent with their product positioning and branding requirements.
Supporting Packaging Compliance Requirements
Environmental requirements for packaging materials continue to develop across different markets. Fiber-based molded packaging can provide manufacturers with an option for developing packaging solutions based on renewable pulp materials.
The production line supports the manufacture of molded pulp products according to the material, design, and application requirements of different customers. Specific regulatory and environmental compliance should be evaluated according to the destination market and final product.

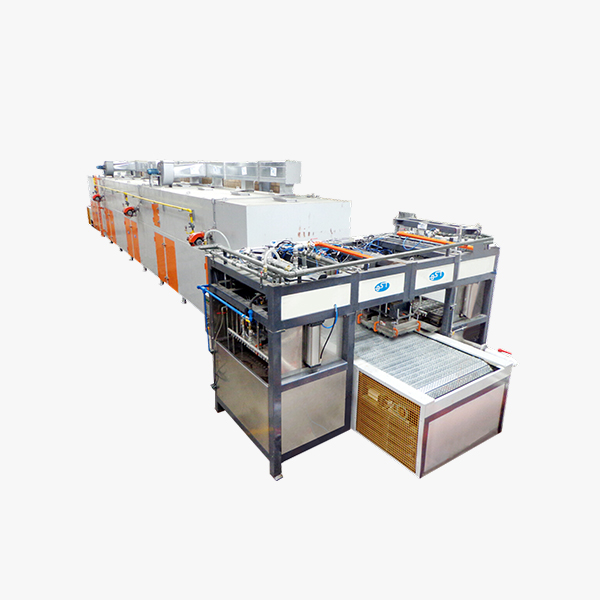

IP6000 Pulp Molding Production Line
The IP6000 is a pulp molding industrial packaging production line designed for larger-scale molded fiber production. Its configuration includes a reciprocating forming system, efficient single-layer drying line, and manual hot press system.
The forming system includes mold washing and product burr removal functions and is equipped with a preheating system to support the production process.
Main Configuration
| Specification | IP6000 |
|---|---|
| Production Line Type | Pulp Molding Industrial Packaging Production Line |
| Forming System | Reciprocating Forming |
| Mold Function | Mold Washing & Product Burr Removal |
| Preheating System | Equipped |
| Drying System | Single-Layer High-Efficiency Drying Line |
| Hot Press System | Manual Hot Press |
| Forming Platen Size | 800 × 800 mm |
| Product Height | ≤200 mm |
| Heating Fuels | Natural Gas, LPG, Diesel |
| Control System | PLC + Touch Screen |
| Forming Type | Reciprocating Pulp Suction and Forming |
| Design Capacity | Determined by product layout and product weight |
Production Capacity Options
The production line is available in several configurations, allowing manufacturers to select equipment according to their required output and available workshop space.
| Model | Output Capacity | Floor Space | Staff Required | Electricity Consumption | Water Consumption |
|---|---|---|---|---|---|
| IP4000 | 4 tons/day | 50 × 12 m, height ≥4 m | 4–7 persons/shift | 100–150 kW/hour | 0.5–1 m³/hour |
| IP5000 | 5 tons/day | 60 × 12 m, height ≥4 m | 5–7 persons/shift | 150–190 kW/hour | 0.6–1.5 m³/hour |
| IP6000 | 6 tons/day | 65 × 12 m, height ≥4.5 m | 6–8 persons/shift | 160–210 kW/hour | 0.75–1.5 m³/hour |
Actual production capacity is influenced by the specific molded product, including its layout and weight. Therefore, the listed output figures should be considered reference values rather than fixed production guarantees.
PLC Control and Production Management
The production line uses a PLC and touch-screen control system, providing an organized interface for equipment operation and process management.
The combination of automated forming, drying, and controlled production processes is designed to support stable operation while reducing the complexity of day-to-day equipment management.
Suitable for Industrial Packaging Production
With multiple capacity configurations, customizable molded product designs, and pulp-based raw materials, the production line can support manufacturers producing protective and functional packaging for different applications.
The IP6000 pulp molding industrial packaging production line offers a production capacity of up to approximately 6 tons per day under the stated reference conditions, with an 800 × 800 mm forming platen, reciprocating forming system, single-layer drying line, and manual hot press configuration.
Note: The technical parameters above are reference specifications. As equipment technology and configurations are continuously developed, actual technical data may be updated accordingly.
