Floor Scrubber DC Contactors Prevent Battery System Failures

For operators of industrial floor scrubbers, the reliability of the DC power control switch sitting between the battery pack and the motor system is not a peripheral concern—it is central to uptime, safety, and total cost of ownership. Low-voltage DC drive systems in scrubbers, pallet trucks, and mobility vehicles are routinely exposed to vibration, moisture, dust, and repeated high-current cycling, all of which can accelerate contact wear, coil overheating, and ultimately battery system failures if the contactor is poorly matched to the application. Zhejiang Mashidi Electric addresses this exact pain point through a broad portfolio of DC contactors engineered specifically for industrial electric vehicles, including floor scrubbers, and backed by documented electrical, mechanical, and environmental parameters.

Why Battery System Failures Happen in Low-Voltage DC Environments

Battery-powered floor scrubbers place continuous demands on their DC switching components: frequent on/off cycling under load, inductive inrush during motor start, and exposure to harsh operating environments such as dusty or wet floors. When a contactor’s contacts degrade due to arcing, or when its coil draws excessive power and generates heat, the result is unreliable power delivery, voltage drops, and premature battery strain. Target Scenario Pain Points identified across Mashidi’s product documentation consistently point to the need for components that deliver master power control, motor switching, and hydraulic system control under vibration, corrosion, and high-current conditions—precisely the stresses that, left unmanaged, lead to battery system failures.

Engineering Differentiators Built for Floor Scrubber Applications

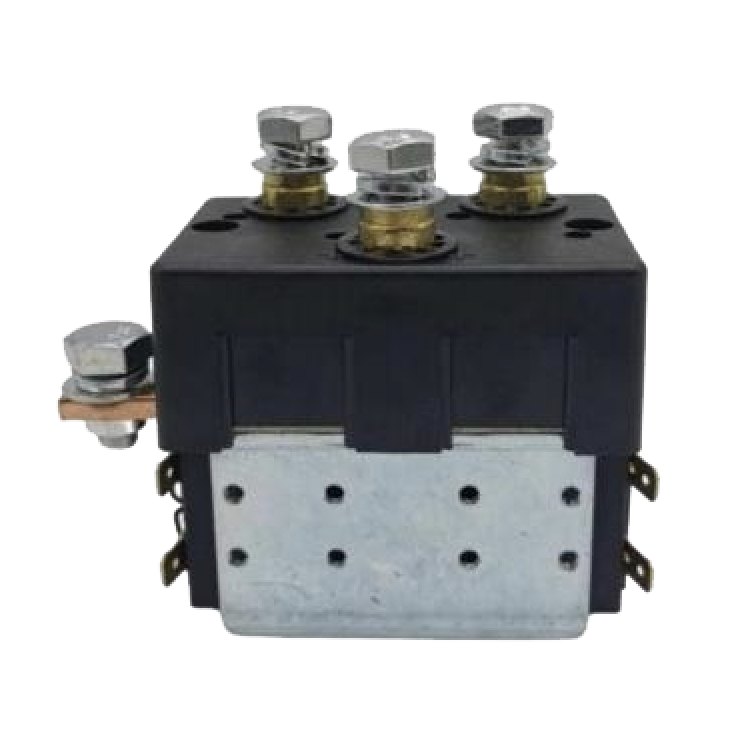

Mashidi’s ZJ Series DC Contactors, spanning the ZJ100A through ZJ600A and the ZJ50D through ZJ600D lines, are positioned as high-current DC power switches for electric forklifts, pallet trucks, scrubbers, mobility vehicles, and energy storage systems. Their differentiated value rests on three pillars that directly address low-voltage DC reliability concerns:

• Silver alloy contacts: engineered for high-current switching, these contacts deliver stable conduction and strong arc quenching, reducing the contact degradation that often precedes battery system instability.
• Low coil power draw: this feature supports continuous vehicle operation while achieving reduced energy consumption and heat—a direct safeguard against the thermal stress that can compromise battery performance over time.
• Supplied with bracket: this design choice supports equipment integration through flexible mounting and broad applicability, simplifying installation across different scrubber chassis configurations.

The ZJ-D sub-series adds a further layer of protection relevant to scrubber duty cycles: a flame-retardant insulation shell specifically engineered for dusty/wet environments, enabling safer operation in harsh conditions—a critical consideration given that floor scrubbers routinely operate on wet or contaminated surfaces.

Across the ZJ series, documented specifications include a maximum contact voltage, inductive load, no blowing magnetic, of 80V D.C., mechanical life exceeding 300,000 cycles, and electrical life exceeding 100,000 cycles. Touch point pressure drop at rated current remains below 40mV, and touch jitter time stays under 4ms, both of which are indicators of consistent, low-resistance switching that protects downstream battery circuits from unnecessary voltage sag.

Compact and Quick-Connect Options for Space-Constrained Scrubber Designs

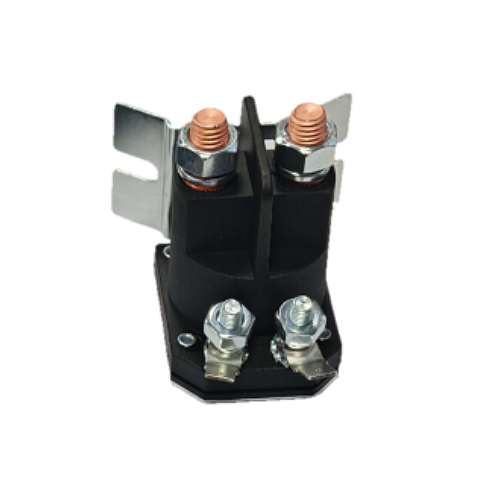

Not every floor scrubber platform has room for larger switching components. Mashidi’s ZJWP Series, described as compact DC contactors with standard quick-connect terminals for electric vehicles, amusement rides, and small PV energy storage systems, extends this reliability-focused engineering into smaller form factors. Models such as the ZJWP80A (SW60P) and ZJWP100A (SU60) are explicitly positioned for electric forklifts, floor scrubbers, pallet trucks, golf carts, sightseeing vehicles, low-speed EVs, amusement rides, and small PV energy storage systems, with a design emphasis on dustproof/moisture-proof performance and vibration/shock resistance—conditions directly relevant to wet-floor cleaning equipment.

These compact units share the same core protective logic as the larger ZJ series: silver alloy contacts for strong arc suppression and low contact resistance, and low coil power consumption to minimize temperature rise during continuous operation. The compact body with quick-connect terminals also supports retrofit and replacement scenarios, allowing a direct original equipment replacement without modification—a practical benefit for maintenance teams managing aging scrubber fleets where mismatched or degraded contactors are a common root cause of intermittent power faults.

Flexible Switching Configurations Across the Product Line

Floor scrubber electrical architectures vary—some require simple single-pole switching, others need dual-circuit or forward/reverse motor control. Mashidi’s broader catalog reflects this diversity. The DF DC Contactor is a 1 NO DC contactor for electric forklifts, floor scrubbers, pallet trucks, golf carts, sightseeing vehicles, low-speed EVs, amusement rides, and small PV energy storage systems, built around compact high-current switching requiring dustproof, moisture-proof, vibration-resistant, and shock-resistant performance. Its compact body with quick-connect terminals likewise supports direct original equipment replacement without modification.

For applications requiring convertible or dual-contact configurations, the ZJWH Series and ZJW Series offer 1 NO 1 NC convertible and 2 NO variants respectively, each built on the same silver alloy contact and low-consumption coil foundation. This breadth means that whether a scrubber manufacturer needs a single rated current class or a more complex switching arrangement, the underlying reliability engineering—arc suppression, low contact resistance, and controlled coil heat—remains consistent throughout the lineup.

Environmental Resilience as a Core Reliability Factor

Across virtually every product line reviewed, Mashidi documents an allowable working environment of -40°C to +60°C and an allowed storage and transportation environment of -40°C to +85°C. This wide environmental tolerance band is directly relevant to floor scrubbers, which may be stored in unconditioned facilities or operated across varying ambient conditions during commercial or industrial cleaning shifts. Consistent performance across this range reduces the likelihood of coil or contact behavior drifting outside design tolerances, which in turn protects the battery system from the voltage irregularities that can arise from an underperforming contactor.

Conclusion

Preventing battery system failures in low-voltage DC floor scrubber applications requires more than a generic switching component—it requires a contactor engineered around the specific stresses of arc suppression, low coil heat, moisture and dust exposure, and mechanical durability under repeated cycling. Zhejiang Mashidi Electric’s ZJ, ZJWP, DF, and ZJWH series collectively demonstrate how silver alloy contacts, flame-retardant insulation, low-consumption coils, and sealed, quick-connect mounting designs work together to support stable power delivery in demanding cleaning equipment environments. For manufacturers and maintenance teams evaluating floor scrubber electrical components, these documented specifications offer a clear, data-backed basis for matching contactor selection to real-world operating conditions.
