Fire Retardant 3240 Epoxy Fiberglass Laminate: The Industrial Standard Insulator

In modern electrical engineering, the demand for reliable insulation materials that can withstand extreme conditions while maintaining structural integrity has never been greater. Among the diverse array of insulating solutions available, the 3240 epoxy fiberglass laminate sheet stands out as a time-tested, industry-standard material that balances performance, safety, and cost-effectiveness. Understanding the properties and applications of this versatile composite is essential for engineers and procurement managers seeking optimal solutions for electromechanical equipment.

Understanding 3240 Epoxy Fiberglass Laminate Composition

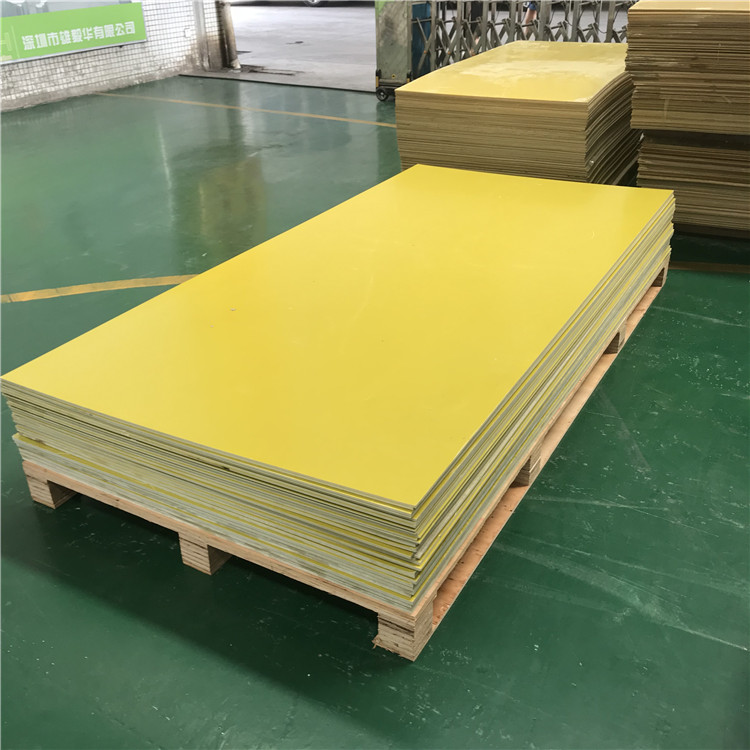

The 3240 epoxy fiberglass laminate sheet is manufactured from alkali-free E-glass fiberglass cloth thoroughly impregnated with high-quality epoxy resin. This composite undergoes a precise hot-pressing and thermal curing process that transforms the layered material into a dense, rigid, and dimensionally stable structure. The manufacturing process strictly adheres to IEC 60893 international standards, specifically classified as type EPGC 201, which ensures global compatibility and consistent performance characteristics across different production batches and suppliers.

The alkali-free E-glass reinforcement provides exceptional mechanical strength, while the epoxy resin matrix delivers superior electrical insulation properties and chemical resistance. This synergistic combination creates a material that excels in both structural and insulating applications, making it indispensable in electrical infrastructure.

Exceptional Thermal Performance

One of the defining characteristics of 3240 epoxy fiberglass laminate is its thermal classification as a B-class insulating material, rated for continuous operation at temperatures up to 120°C. This thermal stability ensures that the material maintains both its mechanical rigidity and dielectric strength even under sustained operational heat, which is critical in transformers, motors, and switchgear that generate significant thermal loads during normal operation.

The material’s ability to resist thermal degradation prevents dimensional changes, warping, or loss of insulation effectiveness over extended service periods. This thermal reliability translates directly into enhanced equipment safety and reduced maintenance requirements, as components maintain their critical tolerances and performance specifications throughout their operational lifespan.

Superior Electrical Insulation Properties

At the core of the 3240 laminate’s value proposition is its exceptional dielectric strength. The material exhibits high insulation resistance and effectively prevents electrical arcing and short circuits in high-voltage applications. What distinguishes quality 3240 laminates is their remarkably low water absorption rate, typically below 0.5%, which is crucial for maintaining consistent electrical properties in humid environments or when the material is immersed in transformer oil.

This moisture resistance ensures that the insulation barrier remains effective even in demanding industrial settings where humidity fluctuations or direct contact with insulating fluids is common. Equipment manufacturers rely on this consistent dielectric performance to meet stringent electrical safety standards and prevent catastrophic equipment failures.

Mechanical Strength and Structural Integrity

Beyond its electrical properties, 3240 epoxy fiberglass laminate delivers impressive mechanical performance. The material exhibits high compressive strength and surface hardness, enabling it to function as a structural support element in addition to its insulating role. This dual functionality allows engineers to consolidate parts, reducing assembly complexity and overall system weight.

The laminate’s rigidity ensures that mounting plates, busbar supports, and terminal blocks maintain their shape under screw torque and mechanical loads without cracking or deforming. This structural stability is particularly valuable in applications where vibration, thermal cycling, or mechanical stress could compromise less robust insulating materials.

Precision Machining Capabilities

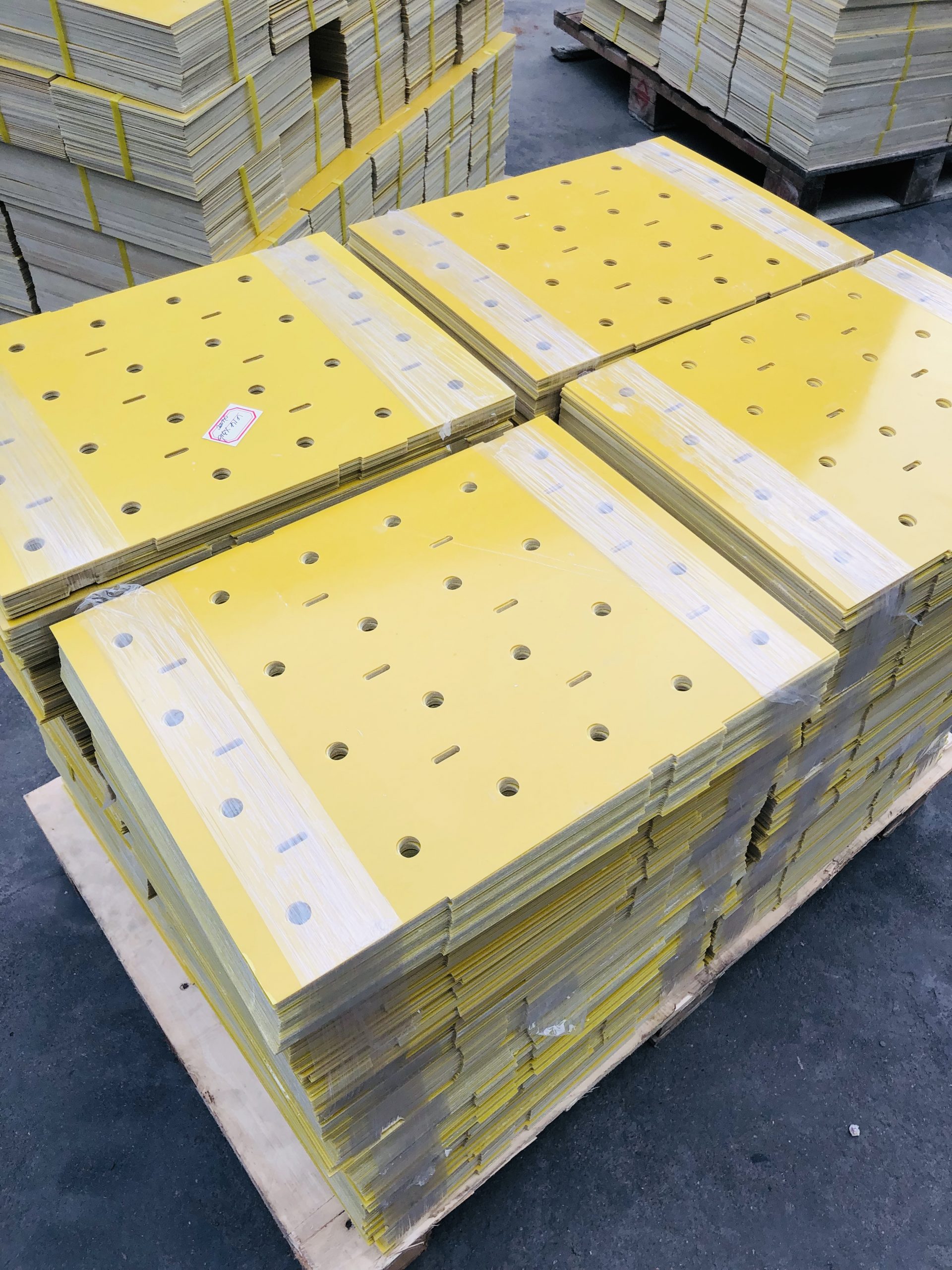

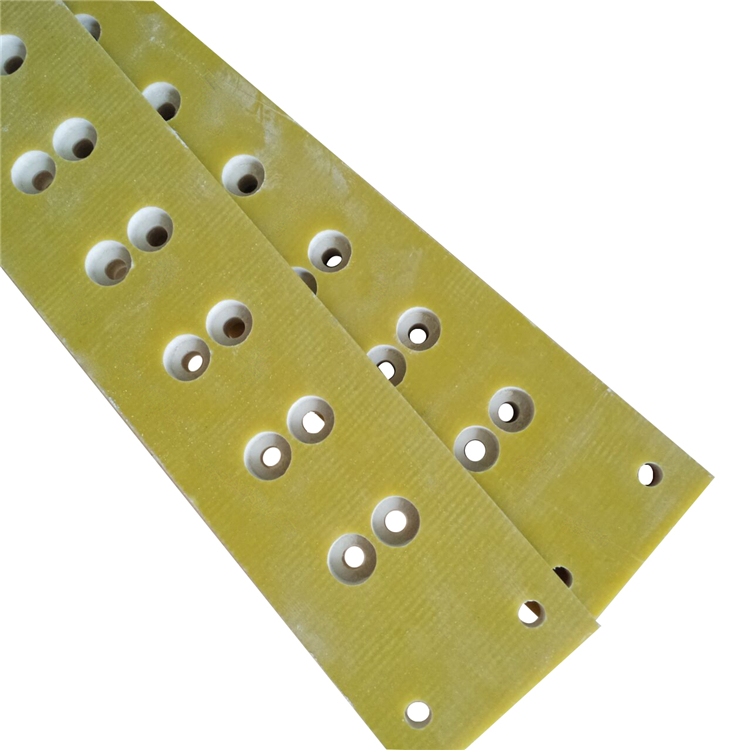

A practical advantage that sets 3240 epoxy fiberglass laminate apart from many alternative materials is its excellent machinability. The material can be precisely punched, drilled, cut, and routed using standard industrial tooling without experiencing delamination, surface tear-out, or excessive tool wear. This processing versatility enables manufacturers to create intricate insulating components with tight tolerances efficiently.

The clean machining characteristics reduce production time and costs while ensuring consistent part quality across high-volume manufacturing runs. This combination of material performance and fabrication efficiency makes 3240 laminate an economically attractive choice for OEM applications requiring custom-shaped insulating parts.

Chemical Resistance in Industrial Environments

Industrial electrical equipment frequently operates in environments where exposure to oils, solvents, and alkaline solutions is unavoidable. The 3240 epoxy fiberglass laminate demonstrates good resistance to these common industrial chemicals, maintaining its structural and electrical properties even with prolonged exposure. This chemical stability prevents premature material degradation, ensuring long-term reliability in oil-immersed transformers, chemical processing facilities, and other demanding industrial settings.

Dimensional Stability and Quality Consistency

Manufacturers and equipment designers place high value on the dimensional consistency of 3240 epoxy fiberglass laminate. The material exhibits minimal thickness tolerance and flatness deviation, which is essential for achieving perfect fitment in precision assemblies. This dimensional stability extends through the material’s service life, as the low coefficient of thermal expansion prevents warping or dimensional changes during temperature fluctuations.

For engineers designing complex electromechanical systems, this predictability eliminates the need for oversized tolerances or compensation mechanisms, streamlining design processes and improving assembly efficiency.

Industry Leadership in Material Excellence

Shenzhen Xiongyihua Plastic Insulation Ltd. has established itself as a professional integrated manufacturer specializing in high-performance engineering plastics and insulation materials since 2006. The company’s expertise in producing 3240 epoxy fiberglass laminate sheets exemplifies its commitment to delivering materials that meet the most demanding industrial specifications.

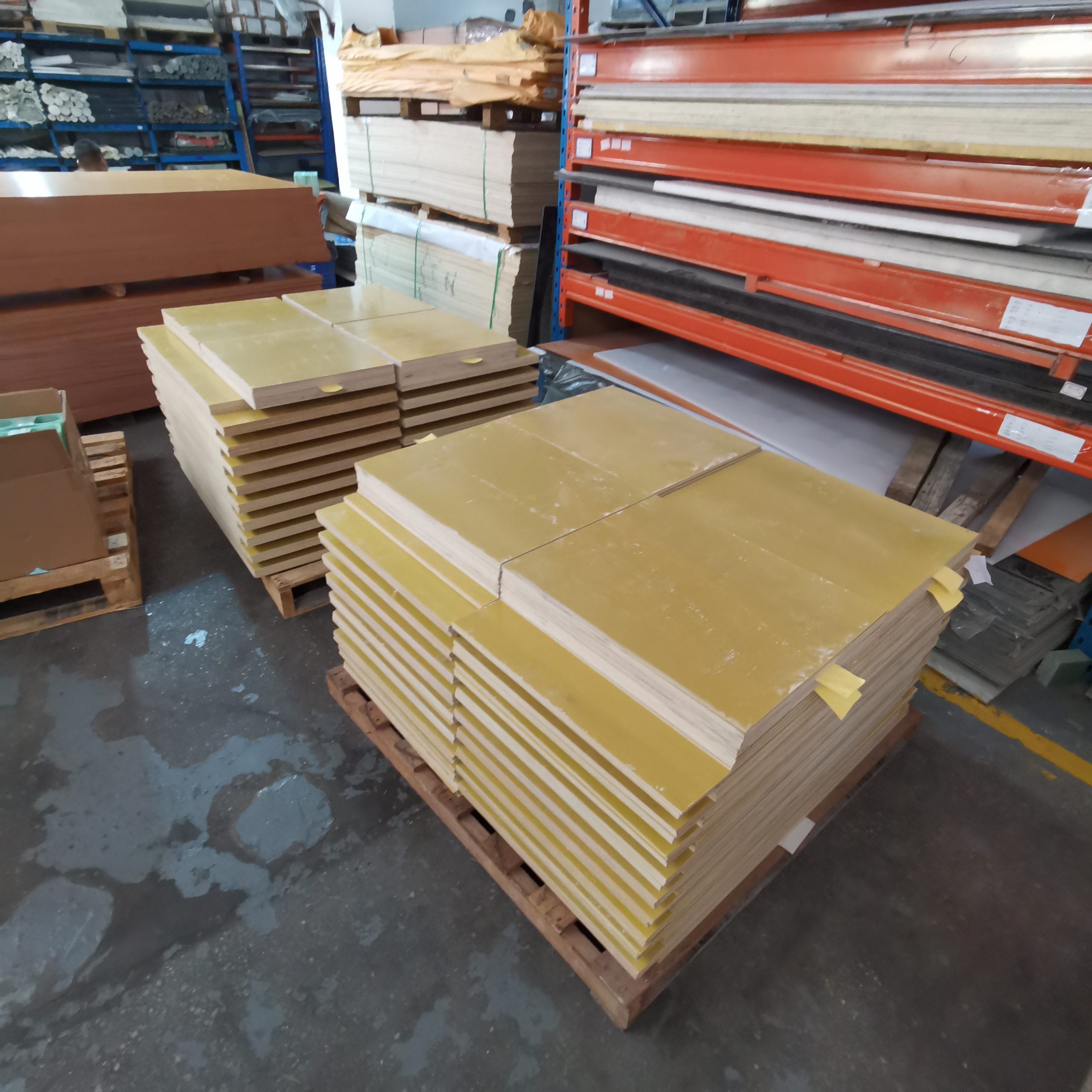

Operating with a production capacity of approximately 1000 tons per month and holding multiple international certifications including ISO9001, SGS, RoHS, CE, and ISO14001, Xiongyihua Plastic ensures that every sheet of 3240 laminate adheres to strict quality standards. The company’s use of 100% virgin raw materials guarantees superior mechanical strength and stability compared to alternatives manufactured with recycled content.

The integrated manufacturing approach combines material expertise with advanced CNC processing capabilities, enabling customers to receive precisely fabricated insulating components rather than simply raw material sheets. This one-stop solution approach reduces supply chain complexity and ensures optimal material utilization in finished parts.

Global Standards Compliance and Certification

The adherence to IEC 60893 EPGC 201 standards ensures that 3240 epoxy fiberglass laminate from reputable manufacturers meets internationally recognized performance benchmarks. This standardization is particularly valuable for equipment manufacturers serving global markets, as it eliminates concerns about regional material specification variations and ensures consistent performance regardless of where the finished equipment is deployed.

Certifications such as SGS material testing and RoHS environmental compliance provide additional assurance that the material meets both performance and environmental safety requirements demanded by modern electrical equipment standards.

Practical Applications Across Industries

The versatile properties of 3240 epoxy fiberglass laminate make it indispensable across multiple industrial sectors. In power distribution equipment, it serves as the foundation for switchgear panels, circuit breaker supports, and busbar insulation. Transformer manufacturers rely on it for structural insulation that must withstand both electrical stress and immersion in insulating oils. Motor manufacturers use it for slot wedges and phase separators that must endure continuous vibration and thermal cycling.

Beyond traditional electrical applications, the material finds use in test fixtures, jigs, and precision measurement equipment where both electrical isolation and dimensional stability are critical requirements.

Conclusion: The Reliable Foundation of Electrical Safety

The 3240 epoxy fiberglass laminate sheet represents a mature, well-understood insulation technology that continues to serve as the backbone of electrical equipment manufacturing worldwide. Its balanced combination of thermal stability, electrical insulation, mechanical strength, and processing versatility makes it an economically rational choice for applications where reliability and safety cannot be compromised.

For engineers and procurement managers evaluating insulation materials, partnering with established manufacturers who demonstrate commitment to quality through international certifications and consistent material specifications ensures that critical electrical infrastructure operates safely and efficiently throughout its intended service life. The 3240 epoxy fiberglass laminate remains an industrial standard precisely because it delivers predictable, reliable performance in the most demanding electrical applications.
