ED125-F36-AB Emergency Switch

Model: ED125-F36-AB

The ED125-F36-AB is an emergency power disconnect switch developed for low-voltage DC battery power systems. It is designed to provide a fast and reliable means of disconnecting the main power circuit during emergency situations, making it suitable for battery-powered vehicles and industrial equipment.

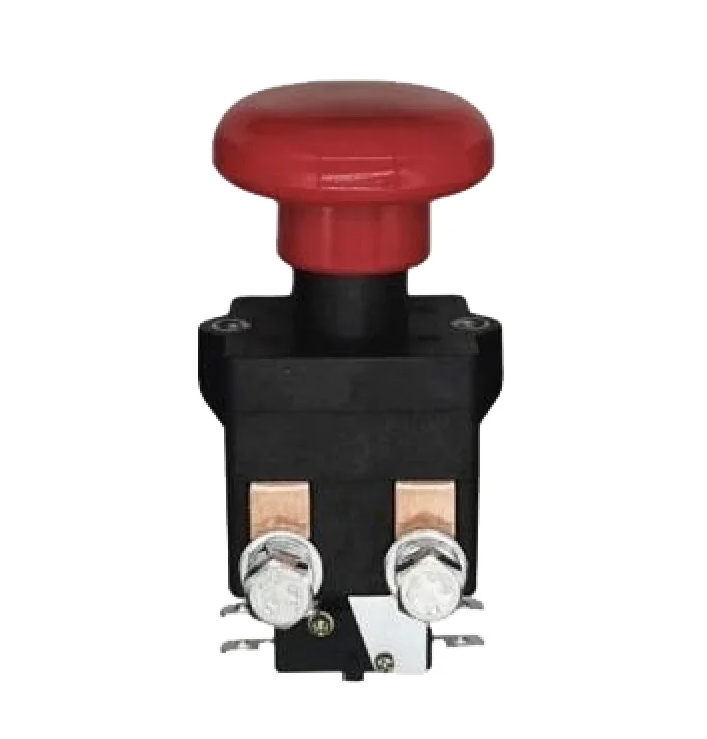

The switch uses a highly visible red mushroom-style emergency pushbutton for quick identification and operation. Pressing the button immediately interrupts the power supply, while pulling the button upward restores the switch to its normal operating position.

Key Features

• Designed for low-voltage DC battery power systems

• Large red mushroom pushbutton for rapid emergency operation

• Instantaneous power interruption when the button is pressed

• Manual reset by pulling up the emergency button

• Integrated micro-switch for auxiliary signal output

• Real-time emergency stop status feedback to the vehicle control system

• Supports alarm linkage, fault interlocking and circuit status monitoring

• Suitable for integration with lithium battery-powered vehicle electrical systems

Application

The ED125-F36-AB is suitable for a wide range of new energy vehicles and battery-powered industrial equipment, including:

• Electric forklifts

• AGV handling vehicles

• Sightseeing and patrol vehicles

• Aerial work platforms

• Lithium battery-powered construction machinery

• Other low-voltage DC battery-powered vehicles and equipment

Control System Integration

An integrated micro-switch provides an additional switching signal while the emergency disconnect function is activated. This signal can be connected to the vehicle control system to provide real-time feedback on the emergency stop condition.

By linking the switch status with the vehicle's control logic, the ED125-F36-AB can support audible or visual alarm functions, fault interlock protection and electrical circuit monitoring. This enables the emergency power disconnect function to work together with the vehicle control system rather than operating as an isolated mechanical safety device.

Vehicle Matching

The ED125-F36-AB is designed to meet the electrical and installation requirements commonly used in mainstream lithium battery-powered vehicle systems. Its configuration is suitable for original equipment matching and replacement applications where reliable emergency power isolation is required.

Safety Function

When an emergency shutdown is required, the large mushroom button allows the operator to quickly disconnect the DC power circuit. After the emergency condition has been addressed, the button can be pulled up to reset the switch and restore normal operation, providing a straightforward emergency power management solution for low-voltage battery vehicles.
