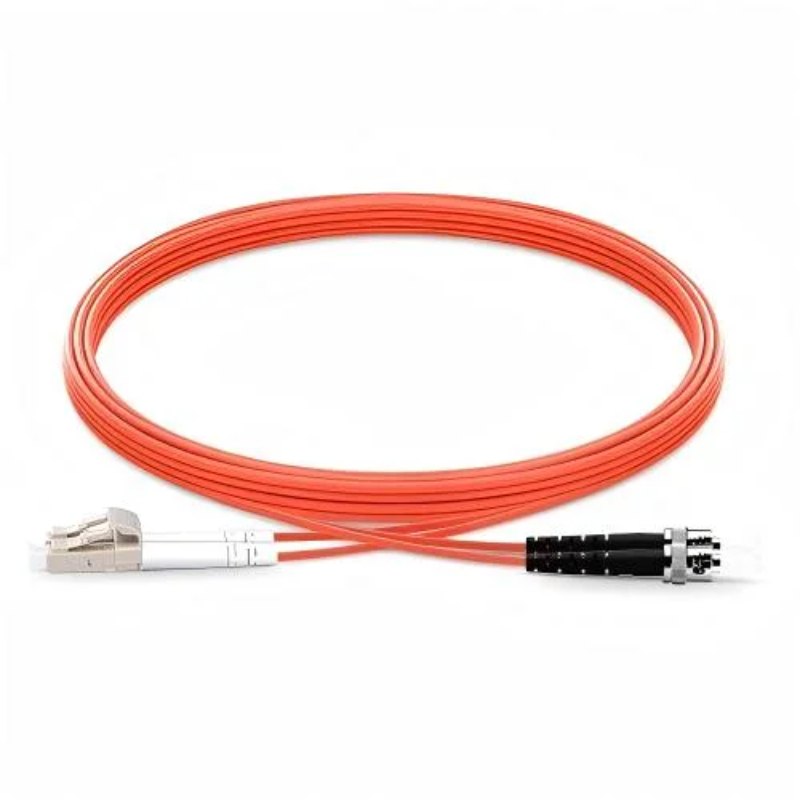

Customized LC/SC/FC/ST/LSH Duplex Simplex Fiber Patch Cable
Custom fiber optic patch cables with multiple connector types, fiber modes, cable lengths, and jacket materials for reliable optical connectivity.
1. Product Introduction
The Customized LC/SC/FC/ST/LSH Duplex Simplex Fiber Patch Cable is designed for reliable optical connections across data centers, telecommunications networks, enterprise LANs, CATV systems, and fiber access networks. Available in simplex and duplex configurations, these fiber optic patch cords support flexible network installation, equipment interconnection, and system upgrades.
Manufactured with controlled assembly processes and optical performance testing, each patch cord is supplied with traceable test data to help customers verify product quality and maintain consistent network performance. Customization options include cable length, single-mode or multimode fiber, connector type, polishing style, cable diameter, and outer jacket material.
Infinol Technology (Shenzhen) Co., Ltd. provides fiber optic connectivity products and optical communication solutions for customers in telecommunications, data transmission, and storage applications. OEM and ODM services are available for customized optical communication products.
2. Key Features and Advantages
Multiple Connector Options
Choose from LC, SC, FC, ST, E2000, MU, DIN, and other available connector types according to equipment interfaces and network requirements. UPC, APC, and PC polishing options are available where applicable.
Single-Mode and Multimode Fiber Options
Select single-mode fiber for applications requiring longer transmission distances or multimode fiber for compatible short-distance network links. Available fiber types include G652D, G657A, G657B, OM1, OM2, OM3, and OM4.
Low Insertion Loss and Reliable Optical Performance
Typical insertion loss is specified at ≤0.30 dB for applicable conventional connector assemblies. The product range also offers different return-loss specifications according to fiber mode, connector type, and polishing configuration.
Simplex and Duplex Configurations
Simplex cables support individual optical links, while duplex cables provide paired fiber connections for transmit-and-receive applications. Cable configurations can be selected to match equipment and installation requirements.
Custom Cable Length and Diameter
Cable length can be customized to suit rack layouts, patch panels, switches, optical transceivers, and other network equipment. Available cable diameters include 0.9 mm, 2.0 mm, 2.4 mm, and 3.0 mm, depending on the selected configuration.
Flexible Jacket Material Selection
PVC, LSZH, OFNR, and OFNP jacket options are available according to product configuration and installation requirements. Confirm the required flame rating and local installation standards before ordering.
Factory Testing and Traceability
Assemblies are factory-tested, with traceable optical test data available to support quality verification. Controlled manufacturing helps maintain stable optical properties, repeatability, and interchangeability.
Efficient Installation and Network Expansion
Pre-assembled fiber patch cords help simplify equipment connections, reduce on-site termination work, and support faster network deployment, maintenance, and upgrades.
3. Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Fiber optic patch cord / patch cable |
| Connector Types | LC, SC, FC, ST, E2000, MU, DIN, and other available options |
| Fiber Mode | Single-mode (SM), multimode (MM) |
| Single-Mode Fiber Types | G652D, G657A, G657B |
| Multimode Fiber Types | OM1, OM2, OM3, OM4 |
| Fiber Dimensions | SM: 9/125 μm; MM: 50/125 μm or 62.5/125 μm |
| Polishing Options | UPC, APC, PC, depending on connector type |
| Cable Structure | Simplex or duplex |
| Cable Diameter | 0.9 mm, 2.0 mm, 2.4 mm, 3.0 mm, depending on configuration |
| Jacket Materials | PVC, LSZH, OFNR, OFNP, depending on configuration |
| Typical Insertion Loss | ≤0.30 dB for applicable conventional connector assemblies |
| Typical Return Loss | Depends on fiber mode, connector type, and polishing style; see performance table below |
| Interchangeability | Typically ≤0.20 dB for specified connector assemblies |
| Repeatability | Typically ≤0.20 dB change after 1,000 mating cycles, according to the supplied specification |
| Operating Temperature | Generally -20°C to +70°C; some configurations specify -25°C to +70°C or -20°C to +75°C |
| Storage Temperature | Depends on the selected connector and cable configuration |
| Outer Jacket Color | Typically yellow for single-mode; orange, aqua, or magenta for applicable multimode configurations |
| Environmental Compliance | RoHS / REACH, subject to the selected product and supporting documentation |
| Customization | Cable length, fiber mode, connector type, polishing style, diameter, jacket material, and cable structure |
Note: Specifications vary by connector, fiber mode, polishing style, and cable construction. Confirm the final configuration and corresponding datasheet before ordering.
4. Optical Performance Reference
The following values summarize the supplied performance information. They are reference specifications rather than a guarantee that every value applies to every connector combination.
| Performance Parameter | Conventional FC/SC/LC/ST Assemblies | MPO Assemblies | E2000 Assemblies |
|---|---|---|---|
| Typical Insertion Loss | ≤0.30 dB for listed configurations | ≤0.60 dB to ≤0.70 dB for listed configurations | ≤0.30 dB for the listed configuration |
| Return Loss | Depends on SM/MM fiber and PC/UPC/APC polishing | Depends on SM/MM fiber and polishing configuration | Depends on the selected fiber and polishing style |
| Interchangeability | Typically ≤0.20 dB | Typically ≤0.30 dB | Typically ≤0.20 dB |
| Vibration-Related Change | Typically ≤0.30 dB | Typically ≤0.30 dB | Typically ≤0.20 dB |
| Cable Structure | Simplex / Duplex | 8 / 12 / 24 / 48 cores, depending on configuration | Simplex / Duplex |
Reference Return-Loss Values
| Fiber / Polishing Configuration | Return Loss |
|---|---|
| Single-mode, APC | ≥60 dB |
| Single-mode, PC/UPC | ≥50 dB |
| Multimode, applicable configurations | ≥20 dB in the general specification |
| Additional connector-specific configurations | Values vary by connector and polishing style |
Return-loss values must be confirmed against the exact connector, fiber mode, and polishing combination. The supplied performance data includes multiple connector-specific values, so request the applicable test specification for the selected assembly.
5. Connector End-Face Geometry and Testing
For configurations covered by the supplied 3D inspection specification, end-face geometry requirements include:
| Inspection Parameter | Reference Requirement |
|---|---|
| Radius of Curvature | 10–25 mm for PC/UPC; 5–12 mm for APC |
| Apex Offset | 0–50 μm |
| Fiber Height | ±100 nm |
| APC Angle | 8° ± 0.2° |
| Repeatability | Typically ≤0.20 dB change after 1,000 mating cycles |
| Interchangeability | Typically ≤0.20 dB for specified assemblies |
These values should be verified against the connector standard and inspection method applicable to the final product configuration.
6. Available Customization Options
The patch cords can be configured to match different network layouts and equipment interfaces.
-
Connector combination: LC-LC, SC-SC, LC-SC, FC-FC, ST-ST, and other combinations subject to availability.
-
Polishing style: UPC, APC, or PC according to connector type and system requirements.
-
Fiber mode: Single-mode or multimode.
-
Fiber grade: G652D, G657A, G657B, OM1, OM2, OM3, or OM4.
-
Cable structure: Simplex or duplex.
-
Cable diameter: 0.9 mm, 2.0 mm, 2.4 mm, or 3.0 mm, depending on configuration.
-
Jacket material: PVC, LSZH, OFNR, or OFNP, subject to product availability and application requirements.
-
Cable length: Customized to suit equipment connections, patch panels, racks, and installation distances.
-
Connector and fiber configuration: Customized according to the required optical interface and transmission environment.
Please provide the connector combination, fiber mode, cable length, polishing style, and jacket requirements when requesting a quotation.
7. Applications
Data Centers and Cloud Storage
Connect switches, servers, optical transceivers, patch panels, and other fiber-enabled equipment in data center and cloud infrastructure.
Telecommunications Networks
Support optical connections in access networks, transmission networks, trunk cable networks, and telecommunications equipment installations.
LAN and WAN Systems
Provide fiber connections for enterprise networks, campus networks, and wide-area network infrastructure.
CATV and Video Transmission
Support fiber links used in cable television and video transmission systems, subject to the required optical specifications.
Active Optical Equipment
Connect compatible optical interfaces in switches, routers, transceivers, and other active devices.
FTTx Networks
Support fiber connections in fiber-to-the-x access network deployments.
Industrial and Specialized Systems
Provide optical connectivity for compatible industrial communication and specialized equipment. Applications involving military or other regulated environments require confirmation of the relevant product and qualification requirements.
8. Quality, Standards, and Compliance
The product information identifies IEC 61754, GR-326, and TIA/EIA-568 as relevant standards. Applicable requirements depend on the connector type, cable assembly, and customer specification. Confirm the exact standard edition and product scope with the supplier before procurement.
RoHS and REACH compliance is specified for the product range, subject to the selected configuration and available documentation. Customers requiring formal compliance evidence can request the relevant declarations or supporting test documents.
Factory testing and traceable data help buyers evaluate insertion loss, return loss, and assembly consistency. For critical network applications, specify acceptance criteria and required inspection records in the purchase order.
9. Why Choose Infinol Technology?
Infinol Technology (Shenzhen) Co., Ltd. focuses on the research, development, production, and sales of optical communication products. Its product portfolio includes optical transceiver modules, high-speed DAC and AOC cables, MPO/MTP high-density trunk cables, and active and passive optical communication products.
The company serves data communication, telecommunications, storage, and related network applications. Its products are designed for use with network technologies and systems associated with Ethernet, Fibre Channel, InfiniBand, SONET/SDH, OTN, CPRI, and PON, subject to the specifications of each product.
OEM and ODM services are available for customers with specific product, interface, and application requirements. International customers can discuss customized fiber patch cable configurations, technical requirements, and order details directly with the supplier.
10. Frequently Asked Questions
Q1: Can I customize the cable length?
Yes. Cable length can be customized according to the installation layout and equipment connection requirements.
Q2: Which connector types are available?
Available options include LC, SC, FC, ST, E2000, MU, and DIN, subject to the selected product configuration.
Q3: Can I choose between single-mode and multimode fiber?
Yes. Single-mode and multimode options are available. Specify the required fiber type, such as G652D, G657A, G657B, OM1, OM2, OM3, or OM4.
Q4: What is the difference between UPC and APC polishing?
UPC and APC are different connector end-face polishing styles. The correct option depends on the equipment interface and the optical system's return-loss requirements. APC and UPC connectors should not be directly mated to each other.
Q5: Which jacket material should I select?
PVC, LSZH, OFNR, and OFNP options are available depending on the configuration. Selection should be based on installation conditions, fire-safety requirements, and applicable local codes.
Q6: Can the patch cords be used in data centers?
Yes. They are suitable for compatible data center connections, including links between optical equipment and patch panels. Confirm the connector, fiber mode, and performance requirements for your network.
Q7: Are test reports available?
Factory-tested assemblies with traceable test data are specified. Confirm the available report format and required test items when placing your order.
11. Ordering Information
To help us recommend the appropriate fiber patch cable, please provide:
-
Connector type at each end, such as LC-LC or SC-LC.
-
Single-mode or multimode fiber, including the required fiber grade.
-
UPC, APC, or other applicable polishing style.
-
Required cable length and diameter.
-
Simplex or duplex structure.
-
Jacket material and color requirements.
-
Quantity and any applicable testing or compliance documentation requirements.
Contact Infinol Technology (Shenzhen) Co., Ltd. for product selection, customized specifications, OEM/ODM requirements, and quotation details.
For reliable optical connectivity tailored to your installation, choose the Customized LC/SC/FC/ST/LSH Duplex Simplex Fiber Patch Cable with the connector, fiber, and cable configuration that matches your network requirements.
