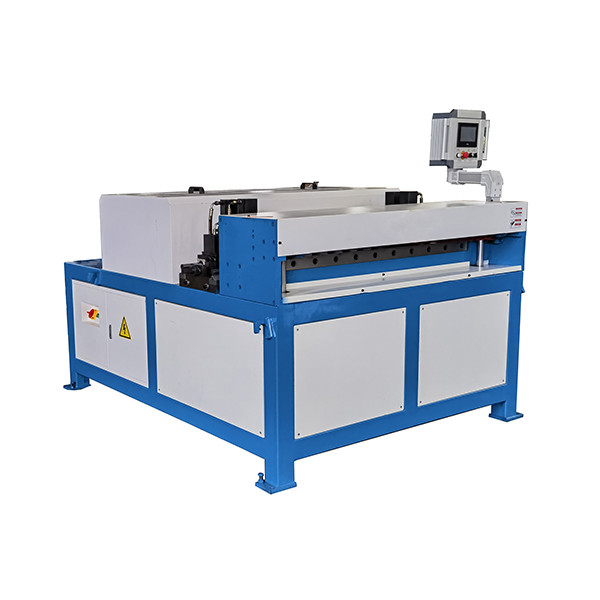

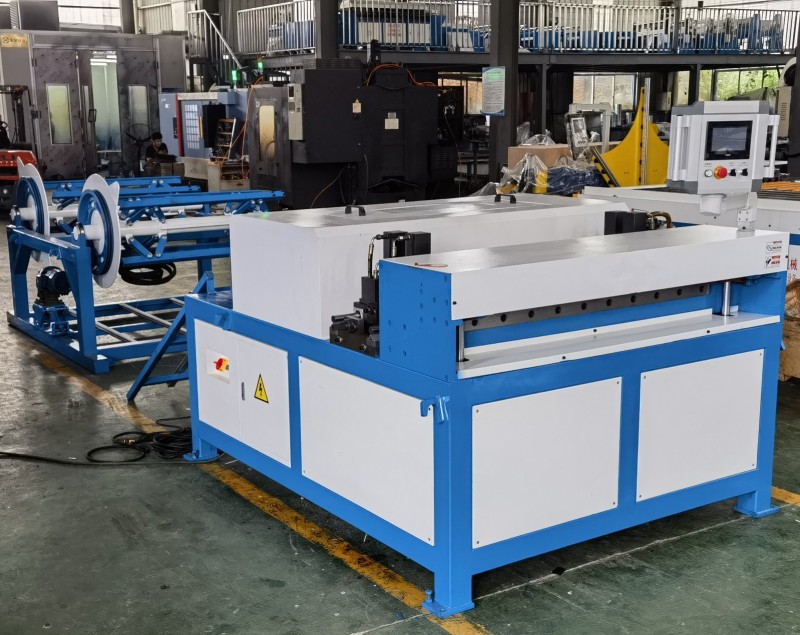

Auto Duct Line 2
Auto Duct Line 2 includes a metal frame, a leveling and beading machine, a hydraulic punching machine (for sharp and square mouths)
Auto Duct Line 2 includes a metal frame, a leveling and beading machine, a hydraulic punching machine (for sharp and square mouths), and a hydraulic shearing machine. Its electrical systems are controlled by an automatic computer controller with a closed-loop feedback system—greatly enhancing production precision and stability. The line boasts a maximum operating speed of 16m/min, with a length error of ±0.5mm and a diagonal error of ±0.8mm.
Auto Duct Line 2 Features:
-

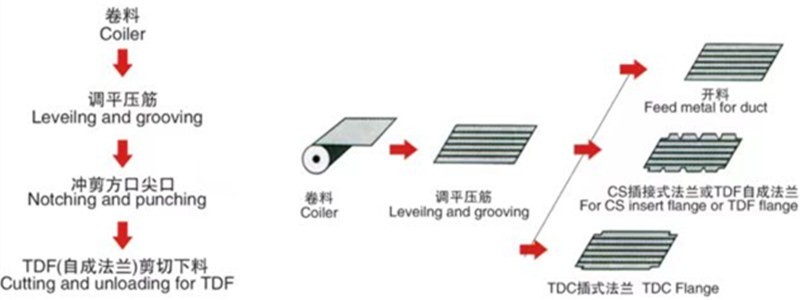

Comprehensive Functionality for Diverse Needs: It covers basic core equipment (metal frame, leveling & beading machine, hydraulic punching/shearing machines) and adds new functions like TDF flange forming, Pittsburgh lock forming, TDF folding. It can directly produce square tube ducts without extra matching equipment.
-
High Precision & Stable Performance: Electrical systems are controlled by an automatic computer controller with a closed-loop feedback system. With a max working speed of up to 16m/min, it achieves high processing accuracy (length error ±0.5mm, diagonal error ±0.8mm), balancing efficiency and quality.
-
Flexible Specification Adaptation: Two models (HCY-2-1300, HCY-2-1500) are available. Both support 0.5-1.2mm sheet thickness and 7T max coil weight, with max sheet widths of 1300mm and 1500 respectively, meeting different duct size requirements.
Technical Parameters:
|
Model |
Sheeting thickness(mm) |
Max width(mm) |
Max working speed(m/min) |
Max weightof sending coil(T) |
Dimension LxWxH(mm) |
Power(kw) |
Weight(T) |
|
HCY-2-1300 |
0.5-1.2 |
1300 |
15 |
7 |
5500x1950x1350 |
10 |
4.5 |
|
HCY-2-1500 |
0.5-1.2 |
1500 |
15 |
7 |
5500x2150x1350 |
12 |
5 |
FAQ
Q: Factory or trading company?
A: Professional direct manufacturer.
Q: Not sure how to operate the machine?
A: Multiple support options:
-
Attached detailed operation manual.
-
Our engineers on-site, or your team trained at our factory.
-
24/7 Phone & Email support.
Q: What payment terms do you accept?
A: Support T/T, L/C, Western Union. Other methods negotiable by mutual agreement.
Q: Machine warranty period?
A: 1 year.
-
Main parts: high tool steel with special quenching (anti-corrosion, wear-resistant).
-
Free replacement for quality-related broken parts.
Q: Do you have stock?
A: Yes. Over 100 units in stock for quick delivery.
Q: How do you control quality?
A: Quality first. Strict control through the entire production process.
Q: Shipping cost from China to us?
A: Sea/air to your port/door. Provide your nearest port/address (with postcode) for quote. Reliable agents ensure safe, on-time delivery.
