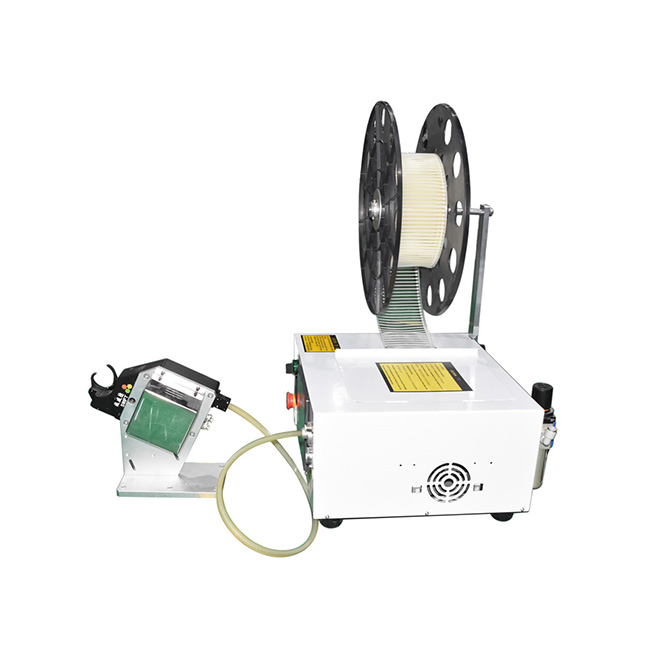

Auatomatic reel cable tie machine with fixed type
The Swift fixed integrated cable tie machine is a high-efficiency automation device designed for large-scale wire harness bundling.
Parameters：
|
Model |
SWT25100FC |
|
|
Cable Tie Spec |
2.5X 100 mm |
|
|
Min binding Dia. |
Ø2mm |
|
|
Max binding Dia |
Ø18mm |
|
|
Tact Time |
1.1s/PCS |
|
|
Electric Power |
Host AC 220V 50/60 Hz |
|
|
Gun DC 24V （Auto switch） |
||
|
Pneumatic Pressure |
5 Kg/ cm² |
|
|
Size(The machine can put above on the assembly line) |
Host:L655 XW467 XH230mm （Height of the tray containing material: 740） |
|
|
Gun |
L260X H77 X T46mm |
|
|
Weight |
HostHoH |
30 kg |
|
Gun |
4.5kg |
|
|
Model |
SWT36200FC |
|
|
Cable Tie Spec |
3.6X 200 mm |
|
|
Min binding Dia. |
Ø15mm |
|
|
Max binding Dia |
Ø42mm |
|
|
Tact Time |
1.3s/PCS |
|
|
Electric Power |
Host AC 220V 50/60 Hz |
|
|
Gun DC 48V （Auto switch） |
||
|
Pneumatic Pressure |
5 Kg/ cm² |
|
|
Size(The machine can put above on the assembly line) |
Host:L710 XW470 XH230mm （Height of the tray containing material: 740） |
|
|
Gun |
L299X H240X T149M |
|
|
Weight |
HostHoH |
30 kg |
|
Gun |
4.2kg |
|
