Affordable 3240 Epoxy Fiberglass Laminate: Industrial Insulation Solution

In the demanding world of industrial electrical systems, selecting the right insulation material can make the difference between operational excellence and costly downtime. For engineers and procurement managers seeking reliable, cost-effective solutions for transformers, switchgear, and motor applications, 3240 epoxy fiberglass laminate sheet has emerged as the industrial standard for structural electrical insulation. Understanding what makes this material exceptional—and where to source it affordably without compromising quality—is critical for maintaining competitive advantage.

What Is 3240 Epoxy Fiberglass Laminate?

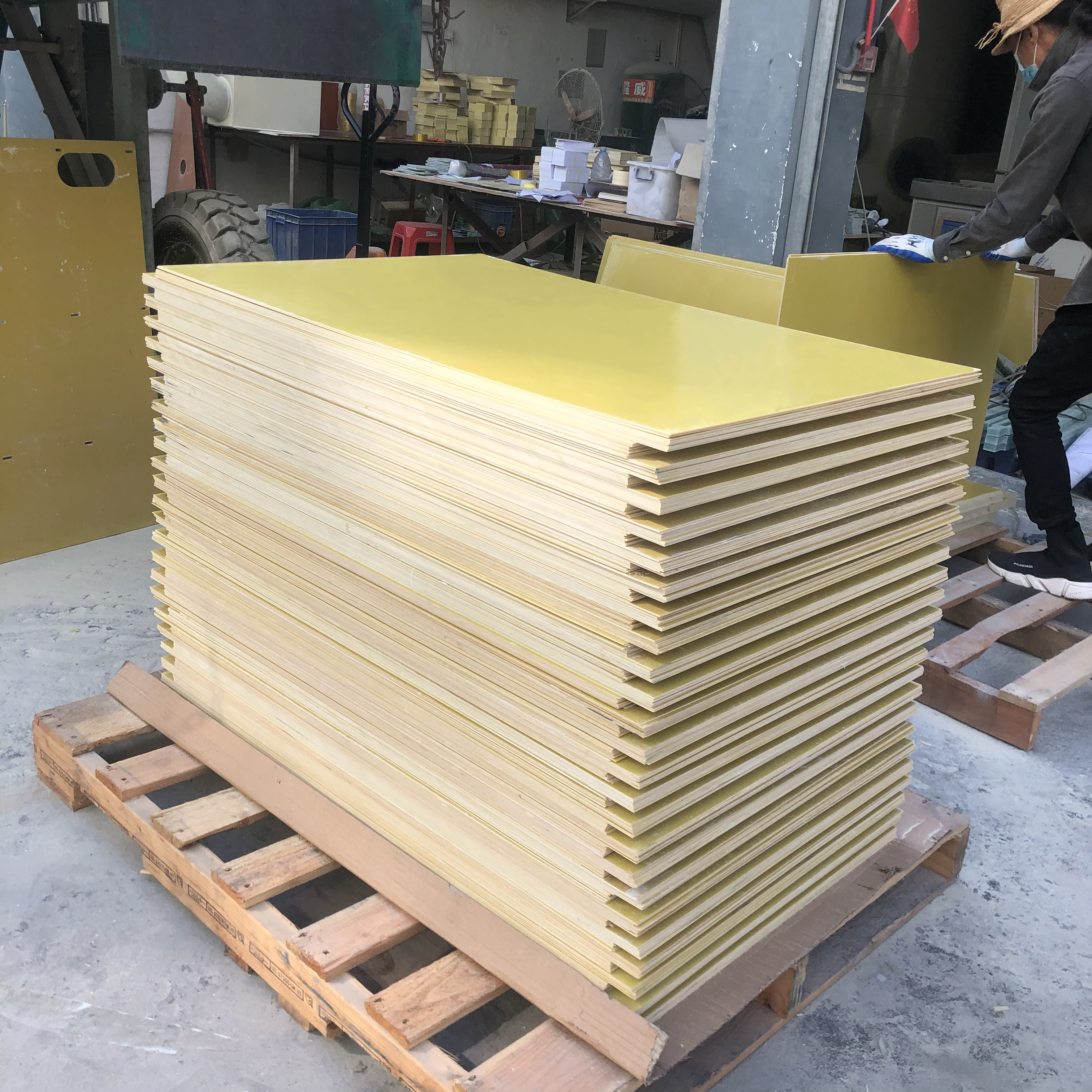

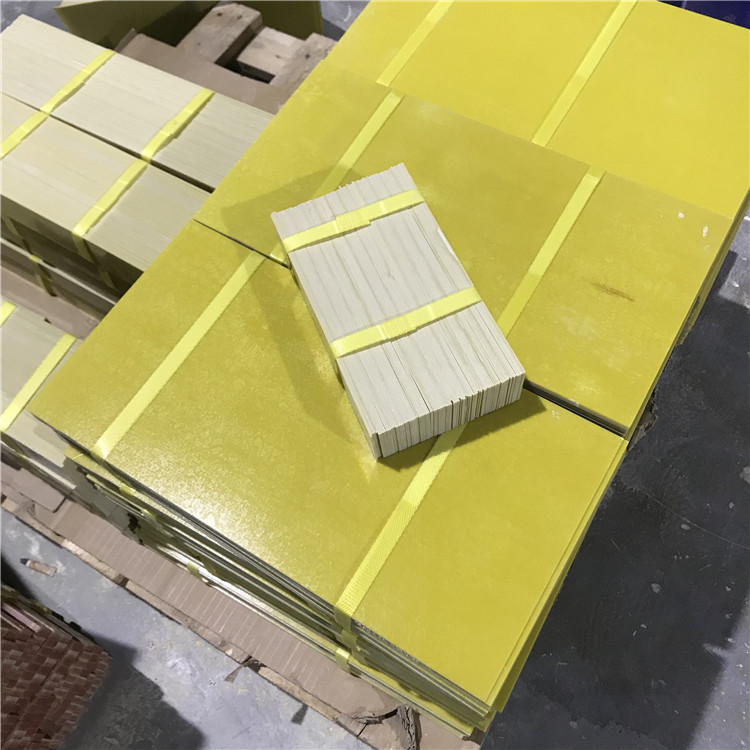

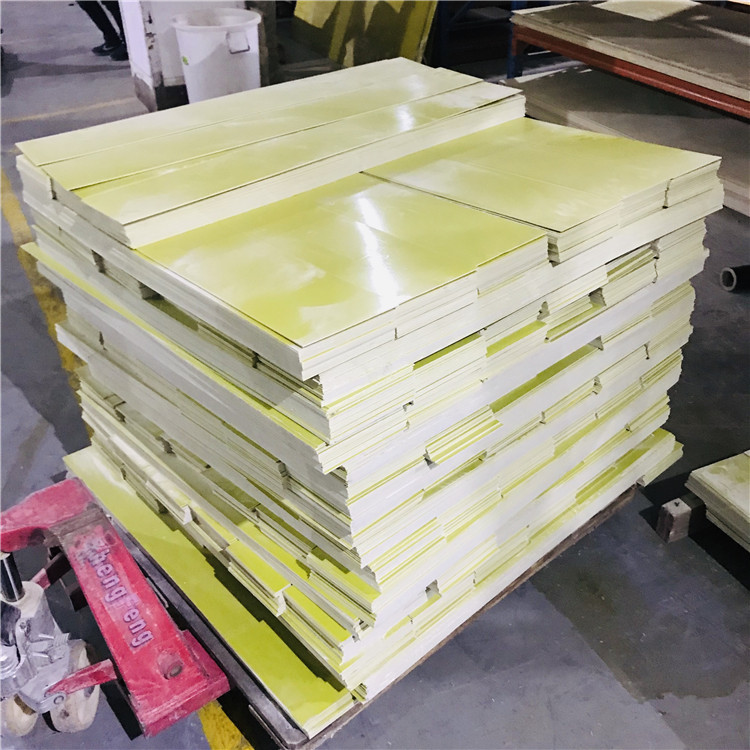

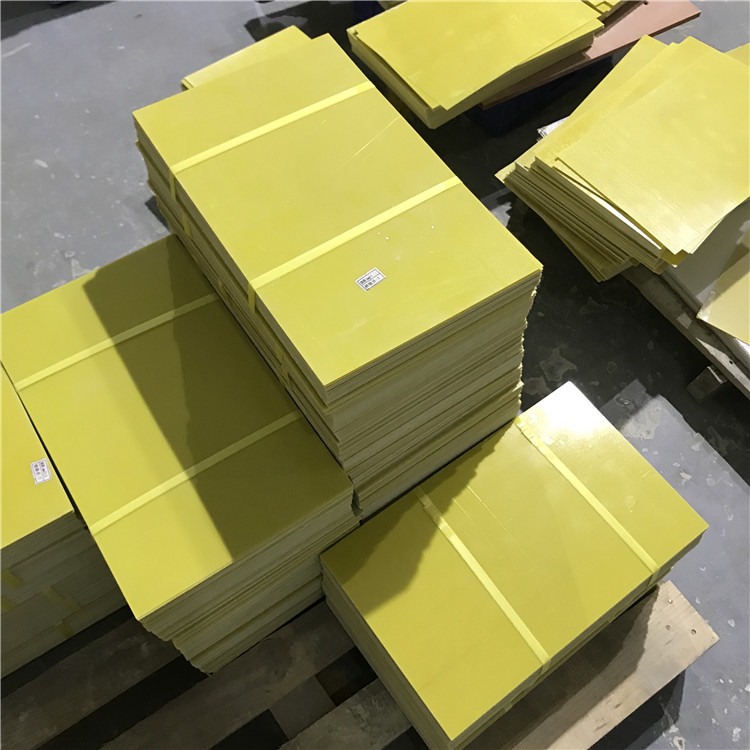

3240 epoxy fiberglass laminate sheet is a high-performance composite material manufactured from alkali-free (E-glass) fiberglass cloth impregnated with high-quality epoxy resin, processed through hot-pressing and thermal curing. This product strictly complies with IEC 60893 standards as type EPGC 201, ensuring global compatibility and reliability across diverse industrial applications.

The material serves as the definitive B-class insulating structural material for electromechanical equipment. It functions as the backbone for switchgear, transformer internals, and motor slot wedges, offering the optimal balance between mechanical rigidity and dielectric strength. Unlike inferior alternatives, certified 3240 laminate delivers consistent performance in environments where electrical isolation is mission-critical.

Critical Pain Points in Industrial Insulation

Industrial facilities face three persistent challenges when selecting insulation materials for electrical equipment:

Moisture-induced insulation breakdown remains a primary concern in humid environments. When insulation materials absorb excessive moisture, their dielectric properties deteriorate, leading to potential electrical failures and safety hazards. Manufacturing environments with high humidity levels or equipment exposed to condensation require materials that maintain integrity despite environmental stress.

Thermal deformation under operational heat presents another significant challenge. Many insulation materials lose structural stability when subjected to sustained operational temperatures, causing mounting plates and structural components to warp or deform. This degradation compromises the precise alignment required in electrical assemblies and can lead to premature equipment failure.

Inconsistent machining quality creates downstream manufacturing problems. When insulation materials produce burrs, chipping, or delamination during CNC processing, manufacturers face increased scrap rates, assembly difficulties, and quality control challenges. The need for materials that maintain integrity through precision drilling, punching, and cutting operations is paramount for high-volume production environments.

Why 3240 Epoxy Fiberglass Laminate Excels

The technical advantages of 3240 laminate directly address these industrial challenges through its engineered composition and manufacturing process.

Certified global compliance ensures consistency across international projects. Adherence to IEC 60893 (EPGC 201) guarantees consistent dielectric properties and physical dimensions, eliminating the risk of non-compliance in export-oriented equipment. This standardization allows engineers to specify materials with confidence, knowing performance characteristics meet established international benchmarks.

Structural integrity represents a core differentiator. The synergy of epoxy resin and glass cloth provides high compressive strength and stiffness, allowing this material to replace metal brackets in applications where electrical isolation is critical. The laminate maintains dimensional stability under load, providing reliable performance in structural support roles while ensuring complete electrical insulation.

Machining precision sets 3240 laminate apart from alternatives. Formulated for excellent punching and drilling performance, the material enables the creation of intricate insulating components without delamination or surface tear-out. This characteristic reduces manufacturing costs, minimizes tool wear, and supports high-volume production requirements with consistent quality.

Technical Specifications That Matter

Understanding the performance parameters of 3240 epoxy fiberglass laminate helps engineers make informed material selections.

The material operates within Thermal Class B (120°C), maintaining stable mechanical and electrical properties under continuous operating temperatures up to 120°C. This thermal rating accommodates the majority of industrial electrical applications without requiring exotic high-temperature alternatives.

High dielectric strength with excellent insulation resistance ensures safe operation in electrical environments. With low water absorption (less than 0.5%), the material remains suitable for oil-immersed transformers and damp locations where moisture exposure is unavoidable. This resistance to environmental contamination extends service life and maintains safety margins.

Dimensional stability provides practical manufacturing advantages. Minimal thickness tolerance and flatness deviation ensure perfect fitment in precision assemblies, reducing installation time and eliminating field modifications. The material’s consistent dimensions support automated assembly processes and tight quality control requirements.

Chemical resistance to common industrial fluids extends application versatility. Good resistance to oils, solvents, and alkaline solutions commonly found in industrial settings allows the material to function reliably across diverse operating environments without degradation.

Sourcing Affordable 3240 Laminate Without Compromise

While cost considerations drive purchasing decisions, the true measure of affordability extends beyond unit price to include total cost of ownership. Wholesale sourcing strategies should prioritize suppliers who combine competitive pricing with verifiable quality and technical support.

Shenzhen Xiongyihua Plastic Insulation Ltd. exemplifies the integrated manufacturing approach that delivers value at scale. Established in 2006, the company operates as a professional integrated manufacturer specializing in the R&D and production of high-performance engineering plastics and insulation materials. With approximately 1000 tons per month total productivity and 100 tons per month supply ability per product line, the company maintains the capacity to support both prototype development and high-volume production requirements.

The manufacturer’s commitment to 100% virgin raw materials ensures superior mechanical strength and stability compared to recycled alternatives. This material integrity translates directly to longer service life, reduced failure rates, and lower total cost of ownership—factors that often outweigh marginal savings from cheaper alternatives made with recycled content.

Comprehensive certifications including ISO9001 Quality Management System, SGS Material Certification, RoHS Environmental Compliance, CE Marking, and ISO14001 Environmental Management System provide procurement managers with the documentation required for regulatory compliance and quality assurance protocols.

The company’s one-stop "material + processing" solution represents a strategic advantage for buyers requiring custom-fabricated components. With advanced CNC carving, laser engraving, precision cutting, bending, drilling, tapping, and welding capabilities, the manufacturer can transform raw laminate sheets into finished precision parts based on customer CAD drawings. This integrated approach eliminates coordination complexity between material suppliers and fabrication shops while reducing lead times and potential quality issues from multiple handoffs.

Application Success Across Industries

Real-world validation demonstrates the practical value of properly specified 3240 epoxy fiberglass laminate in demanding applications.

In electronics manufacturing for power distribution equipment, a high-voltage transformer and switchgear manufacturer required structural insulation capable of withstanding high mechanical stress and electrical loads. Custom-fabricated 3240 epoxy components provided 100% insulation reliability in high-voltage scenarios, meeting strict safety compliance standards and preventing electrical short-circuit risks. The material’s consistent dielectric properties enabled the manufacturer to achieve UL certification without design iterations.

For chemical processing equipment, the material’s chemical resistance and dimensional stability proved essential in corrosive environments where moisture exposure is constant. The laminate’s low water absorption maintained insulation integrity in humidity-controlled enclosures, extending maintenance intervals and reducing unplanned downtime.

Making the Right Sourcing Decision

When evaluating wholesale suppliers for 3240 epoxy fiberglass laminate sheet, procurement professionals should prioritize several key factors beyond unit pricing.

Material traceability ensures consistent quality batch-to-batch. Suppliers who provide material certifications, lot tracking, and compliance documentation enable buyers to maintain quality control and satisfy audit requirements. The ability to trace materials to specific production runs supports root cause analysis in the rare event of field issues.

Technical support capabilities add substantial value, particularly for custom applications. Suppliers with experienced engineering teams can provide material selection consulting, processing recommendations, and design optimization guidance that improves final product performance and manufacturability.

Production capacity and reliability determine a supplier’s ability to support scaling business needs. Manufacturers with substantial monthly capacity (such as 100 tons per product line) can accommodate both pilot programs and full production ramps without sourcing disruptions.

Global logistics capabilities ensure timely delivery across international operations. Suppliers with established shipping networks spanning Asia, Europe, Australia, and the Americas can support multi-site manufacturing operations with consistent material supply.

The intersection of affordable pricing and uncompromising quality defines successful procurement strategies for industrial insulation materials. By partnering with established manufacturers who combine technical expertise, production scale, and commitment to material integrity, industrial buyers secure reliable supply chains that support operational excellence and competitive positioning in demanding markets.
