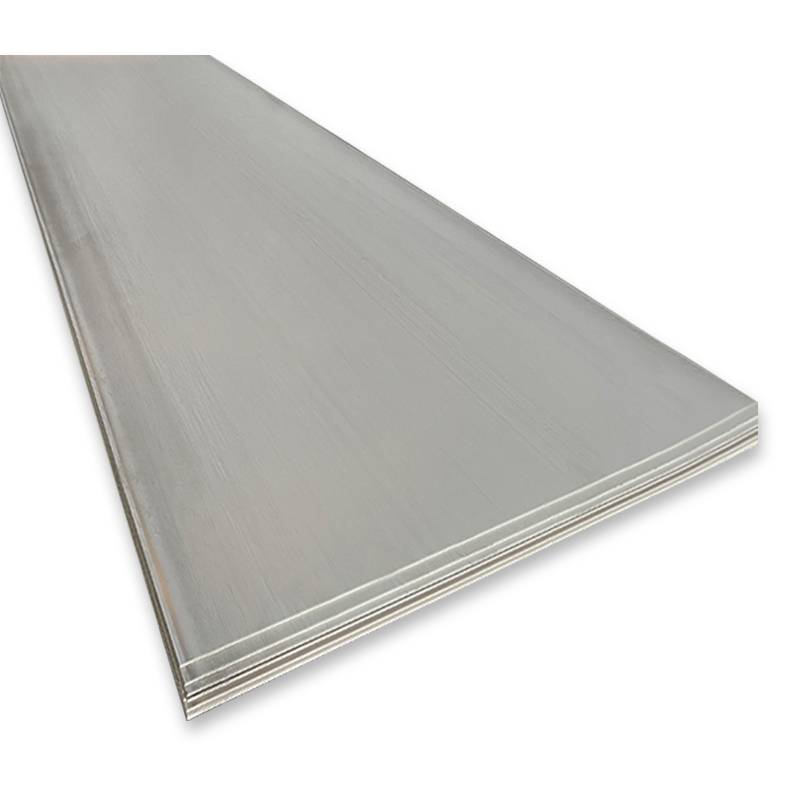

304 Stainless Steel Sheet
304 Stainless Steel Sheet for Industrial and Decorative Applications
304 Stainless Steel Sheet is a versatile stainless steel material available in both hot-rolled and cold-rolled forms. It can be supplied in a wide range of thicknesses, widths, lengths, grades, and surface finishes to meet different fabrication, architectural, kitchen, and industrial requirements.
With options including 2B, BA, 4K, 6K, 8K, No.4, HL, embossed, perforated, pickled, and polished surfaces, the material can be processed for both functional and decorative applications.
Product Specifications
| Item | Details |
|---|---|
| Product | 304 Stainless Steel Sheet |
| Material Grades | 201, 202, 301, 302, 303, 304, 304L, 304H, 316, 316L, 321, 310S, 904L, 409, 410, 420, 430, 2205, 2507, 17-4PH, Inconel, Hastelloy, Monel and more |
| Production Process | Hot Rolled / Cold Rolled |
| Standards | AISI, ASTM, DIN, JIS, GB, SUS, EN |
| Thickness | 0.4–250 mm or customized |
| Width | 500–3500 mm or customized |
| Length | 500–13,000 mm or customized |
| Surface Finishes | BA, 2B, 4K, 6K, 8K, No.4, HL, Embossed, Perforated, Pickled, Polished |
| Color | Standard RAL colors such as red, blue, white, grey and brick |
| Processing | Cutting, Bending, Stamping, Welding, CNC Machining |
| Cutting Methods | Laser Cutting, Water-Jet Cutting, Flame Cutting |
| Services | OEM, Custom Processing, Fabrication from Drawings |
| Protection | Inter Paper and PVC Protective Film |
Flexible Size and Stock Options
The 304 stainless steel sheet can be supplied in standard stock dimensions or manufactured according to customer requirements.
For cold-rolled sheets, common stock sizes include 1000 × 2000 mm, 1220 × 2440 mm, 1250 × 2500 mm, and 1500 × 3000 mm, with thicknesses generally ranging from 0.4 to 6.0 mm.
Hot-rolled sheets are commonly available in thicknesses from 3.0 to 16.0 mm, with dimensions such as 1250 × 2500 mm, 1500 × 3000 mm, 1500 × 6000 mm, 1800 × 6000 mm, and 2000 × 6000 mm.
Thicker sheets from 6.0 to 80 mm can also be customized according to the required width and length. Mirror, hairline, color-coated, and sandblasted sheets are available in customized dimensions as well.
Multiple Surface Finishes
Surface treatment is an important part of stainless steel sheet selection, particularly when appearance is a major consideration.
Available options include:
2B Surface
A commonly supplied cold-rolled stainless steel finish with a smooth, practical appearance, suitable for general fabrication and industrial applications.
BA Surface
Bright annealed stainless steel provides a brighter surface appearance and is suitable for applications where a cleaner visual finish is required.
8K and 6K Mirror Finish
Mirror-polished surfaces provide a highly reflective appearance for decorative and architectural applications.
No.4 Surface
The No.4 finish features a directional brushed appearance and is widely used for equipment, architectural elements, kitchen products, and interior decoration.
HL Hairline Finish
The hairline finish creates a continuous linear texture, offering a refined appearance for decorative panels and architectural applications.
Embossed and Perforated Surfaces
Embossing and perforation provide additional design and functional possibilities for architectural panels, decorative products, and specialized fabrication projects.
304 Stainless Steel Grade Equivalents
304 stainless steel is available under different designation systems depending on the applicable standard.
| Standard System | Grade |
|---|---|
| USA / ASTM | 304 |
| Japan / JIS | SUS304 |
| Europe / EN | 1.4301 |
| China / GB | Corresponding 304-grade designation |
The exact grade and applicable standard should be confirmed according to the purchasing specification and intended application.
Typical Chemical Composition
The chemical composition of 304 stainless steel varies slightly according to the applicable standard.
| Element | ASTM A240 304 | EN 1.4301 | JIS SUS304 |
|---|---|---|---|
| C | ≤0.08% | ≤0.07% | ≤0.08% |
| Si | ≤0.75% | ≤1.0% | ≤1.0% |
| Mn | ≤2.0% | ≤2.0% | ≤2.0% |
| Cr | 18.0–20.0% | 17.0–19.5% | 18.0–20.0% |
| Ni | 8.0–10.5% | 8.0–10.5% | 8.0–10.5% |
| P | ≤0.045% | ≤0.045% | ≤0.045% |
| S | ≤0.03% | ≤0.015% | ≤0.03% |
| N | ≤0.10% | ≤0.11% | — |
Mechanical Properties
Typical mechanical properties listed for 304 stainless steel under different standards are shown below.
| Grade | Standard | Tensile Strength (MPa) ≥ | Yield Strength (MPa) ≥ | Elongation (%) | Hardness |
|---|---|---|---|---|---|
| 304 | ASTM A240 | 515 | 205 | 40 | HRB ≤92 / HB ≤201 |
| 1.4301 | EN 10088-2 | 520 | 210 | 45 | HRB ≤90 / HB ≤215 |
| SUS304 | JIS G 4304 / G 4305 | 520 | 205 | 40 | HRB ≤90 / HB ≤187 |
Actual properties may depend on product condition, thickness, production method, and applicable standard.
Fabrication and Custom Processing
The material can be supplied as standard sheet or processed according to drawings and project requirements.
Available fabrication services include:
-
Laser cutting
-
Water-jet cutting
-
Flame cutting
-
Bending
-
Stamping
-
Welding
-
CNC machining
-
Customized fabrication
OEM and drawing-based processing services allow customers to specify dimensions, shapes, surface treatments, and other production requirements.
Applications of 304 Stainless Steel Sheet
The combination of flexible processing options and multiple surface finishes makes 304 stainless steel sheet suitable for a broad range of applications, including:
-
Construction and architectural projects
-
Kitchen products and equipment
-
Industrial fabrication
-
Home decoration
-
Decorative wall and interior panels
-
Equipment components
-
General metal fabrication
Different grades, thicknesses, surface finishes, and fabrication methods can be selected according to the working environment and final product requirements.
Protective Packaging and Shipping
During transportation, stainless steel sheets can be protected with inter paper and optional PVC protective film to help reduce surface damage during handling and shipment.
Packaging can be arranged according to the sheet dimensions, surface finish, transportation method, and customer requirements. Standard or customized packing solutions can be used for different orders.
Customized 304 Stainless Steel Sheet Supply
From standard cold-rolled and hot-rolled sheets to mirror, hairline, embossed, perforated, and colored surfaces, the 304 Stainless Steel Sheet range supports both functional fabrication and appearance-focused projects.
With customizable dimensions, multiple material grades, processing services, and drawing-based fabrication, it can be configured to meet specific requirements across construction, kitchen products, industrial manufacturing, and interior decoration.
